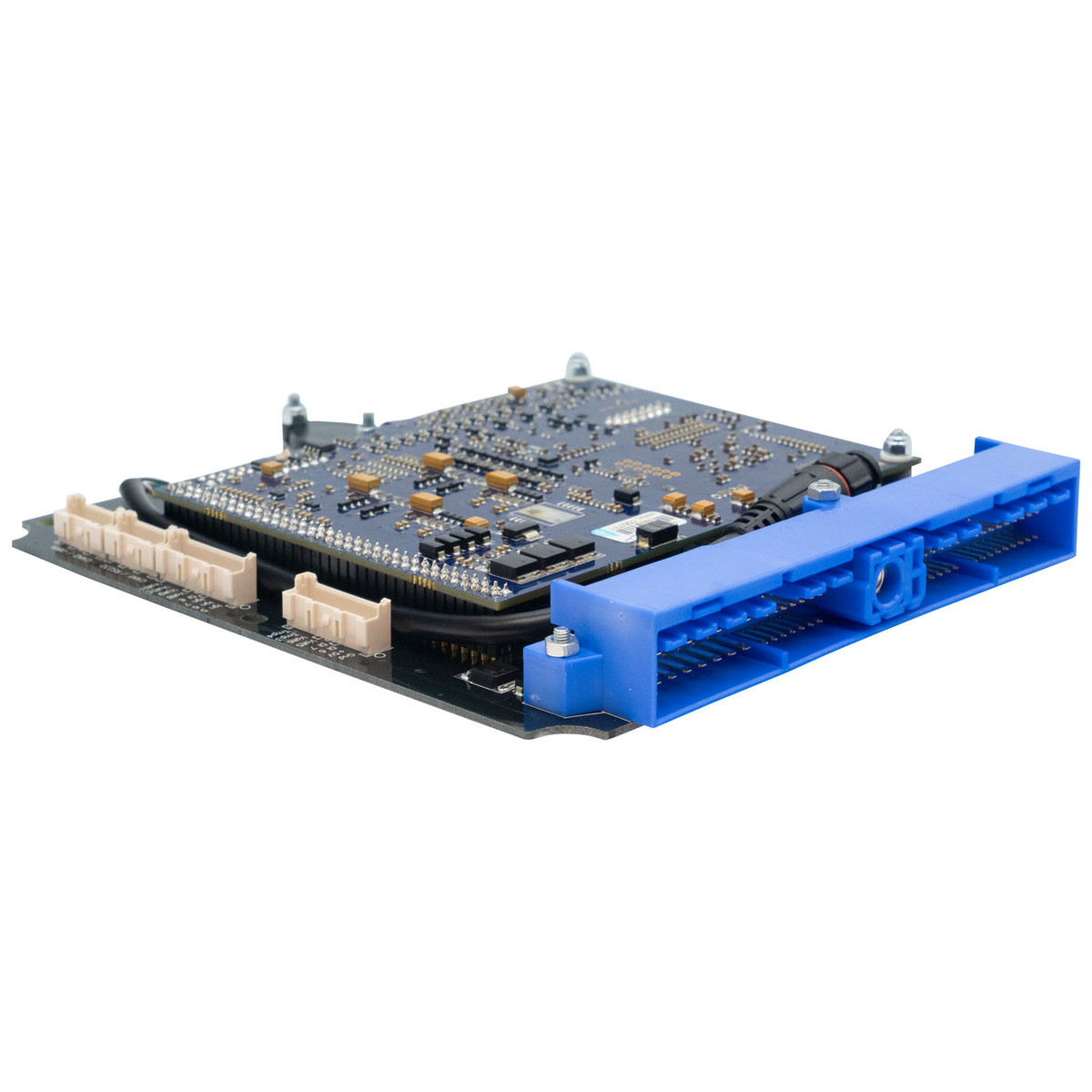

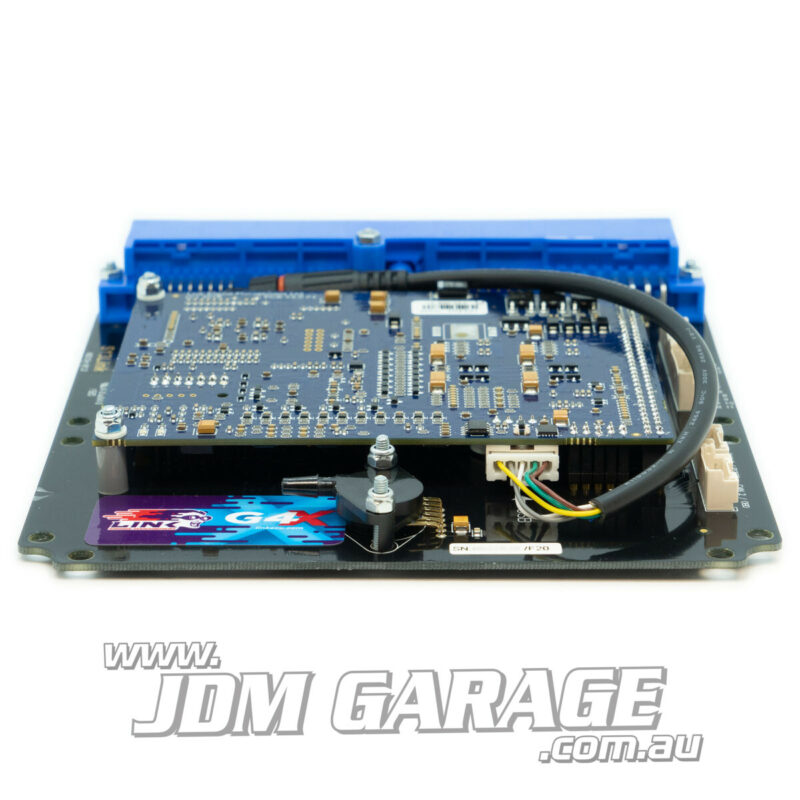

Link G4X Plug In ECU Silvia SR

Link G4X Plug In ECU Silvia SR


  • Shipping Worldwide!
  • Click & Collect from Gold Coast, QLD
  • New & Used OEM & Aftermarket Parts
  • Australian Owned & Operated

G4 X PlugIn Key Features (where applicable):

Up to 6D fuel and ignition mapping

Precision closed loop cam control (four cam, independent control)

Sequential fuel delivery

Digital triggering, all OEM patterns

OEM idle hardware supported

5D boost control with three switchable tables

Motorsport features – antilag, launch, flat shift

Continuous barometric correction (on board)

CAN port

QuickTune – automated fuel tuning

Individual cylinder correction

USB tuning cable included

Stats recording into on-board memory

Gear compensations for spark, boost and fuel

Real time selectable dual fuel, ignition and boost maps

Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical

Boost control referenced to gear, speed or throttle position

512 mega bytes data logging memory

Staged injection

Knock with “windowing”

I/O Expansion Options:

The following expansion connector inputs/outputs are provided:

Expansion connector 1

SGnd                Sensor Ground Only

+5V Out        Low Current +5V Supply

DI 7                Digital Input

DI 8                Digital Input

An Volt 10        Analog 0-5V input

An Volt 9        Analog 0-5V input

Ign 7                Ignition 7 Auxiliary Output

Ign 8                Ignition 8 Auxiliary Output

Expansion connector 2

SGnd                Sensor Ground Only

+5V Out        Low Current +5V Supply

DI 5                Digital Input

DI 6                Digital Input

An Volt 5        Analog 0-5V input

An Volt 6        Analog 0-5V input

An Temp 2        Temperature sensor input

An Temp 3        Temperature sensor input

Pin 108 – OBD1 wire now used for IAT on Temp 4.

Additional information

Weight 5 kg
Dimensions 30 × 30 × 30 cm


Engine Compatibility

S13 CA18-S14 Series 1 SR20 (76pin Connector), S13 S14a S15 SR20DET (64 Pin Connector)


180sx, S13, S14, S15
