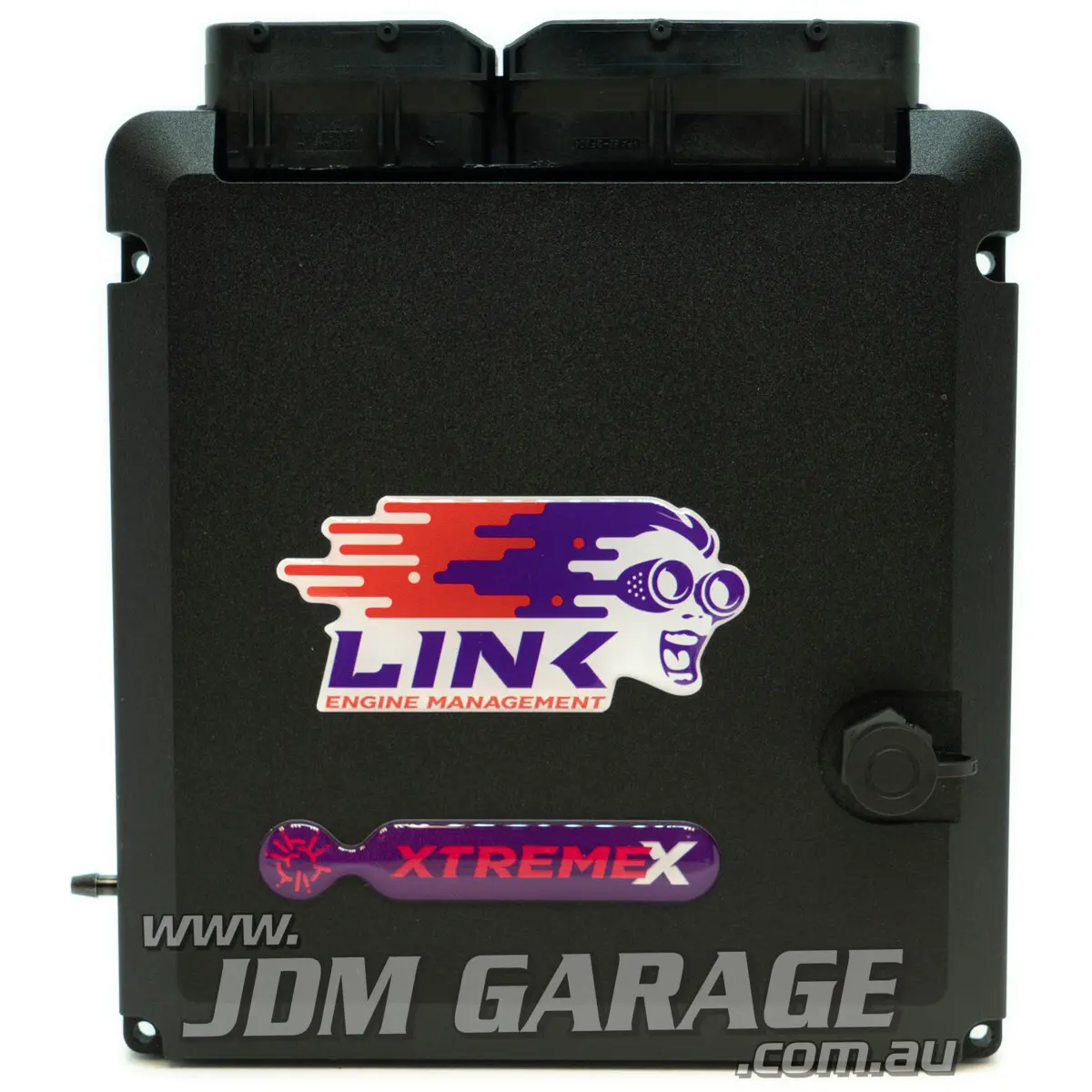

Link G4X Plug In ECU 350Z V35
$2,050.00 AUD $1,947.50 AUD Add to cart
Sale!
Brands:Link

Link G4X Plug In ECU 350Z V35

$1,947.50 AUD

-5%

Suitable applications:

2002 to 2006 Nissan 350Z (Fairlady Z Z33)

2003 to 2006 Nissan Skyline V35

2003 to 2006 Infinity G35

Available on backorder

Raceworks Motorsport Air Temp Sensor

0-5 Volt, 1/8 BSP, Inc Plug & Pins

Suits all aftermarket ECUS



Raceworks Motorsport Water Temp Sensor

0-5 Volt, 1/8 BSP, Inc Plug & Pins

Suits all aftermarket ECUS

Condition: New

G4X PlugIn Key Features (where applicable):

  • Up to 6D fuel and ignition mapping
  • Precision closed loop cam control (four cam, independent control)
  • Sequential fuel delivery
  • Digital triggering, all OEM patterns
  • OEM idle hardware supported
  • 5D boost control with three switchable tables
  • Motorsport features – antilag, launch, flat shift
  • Continuous barometric correction (on board)
  • CAN port
  • QuickTune – automated fuel tuning
  • Individual cylinder correction
  • USB tuning cable included
  • Stats recording into on-board memory
  • Gear compensations for spark, boost and fuel
  • Real time selectable dual fuel, ignition and boost maps
  • Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
  • Boost control referenced to gear, speed or throttle position
  • 512 mega bytes data logging memory
  • Staged injection
  • Knock with “windowing”

I/O Expansion Options:

The following expansion connector inputs/outputs are provided:

Expansion connector 1

Gnd                Sensor Ground Only

+5V                Low Current +5V Supply

Aux 15                Auxiliary Output

Aux 14                Auxiliary Output

DI 8                Digital Input

DI 9                Digital Input

An Volt 8        Analog 0-5V input

Expansion connector 2

An Temp 4        Temperature sensor input

DI 11                Digital Input

Aux 16                Auxiliary Output

Aux 8                Auxiliary Output

+5V                Low Current +5V Supply

Gnd                Sensor Ground Only

Download Manual

Click here to download the user manual.

Additional information

Weight 5 kg
Dimensions 30 × 30 × 30 cm
Condition

New

Chassis

350Z, V35

Engine

VQ35
