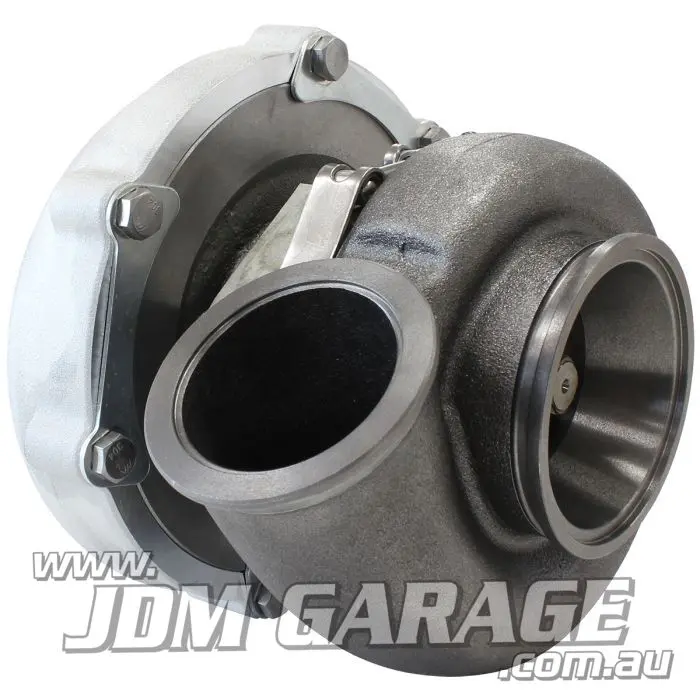

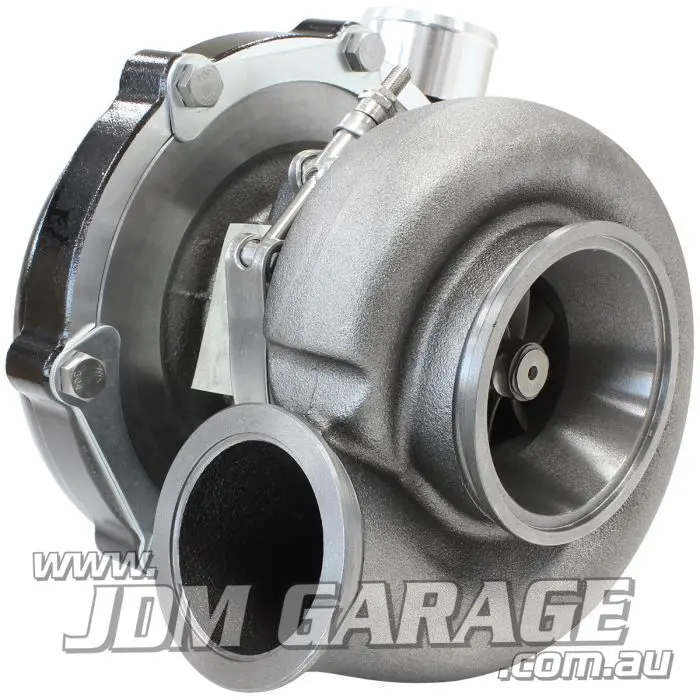

BOOSTED B5855 V-Band Turbocharger Specifications
Recommended horsepower rating: 475-770HP
Recommended engine displacement: 2.0L to 3.5L
– Dual ceramic ball bearing
– Point Milled 7075 billet compressor wheel
– Ported shroud compressor cover
– Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
– 1/8″ NPT boost reference port
– External wastegate sold separately
– Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
– V-Band single entry turbine inlet flange
– 9 blade turbine wheel
– SiMo-nodular cast iron rear housing
– V-Band turbine outlet flange
– 4 x M14 x 1.5mm coolant ports (Must install water lines on opposite sides of the core)
– 7/16″-24 oil feed fitting with in-built restrictor
– 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: 58mm
Exducer: 71.40mm
Extended Tip: 74mm
A/R: 0.72
Compressor Inlet: 4″ Slip fit
Compressor Outlet: 2″ Slip fit
Turbine Specifications
Inducer: 60mm
Exducer: 55mm
Rear housing available in various sizes
Turbine Inlet Flange: V-Band (AF8080-1016)
Turbine Outlet Flange: V-Band (AF8080-1000)
Wastegate
External wastegate
