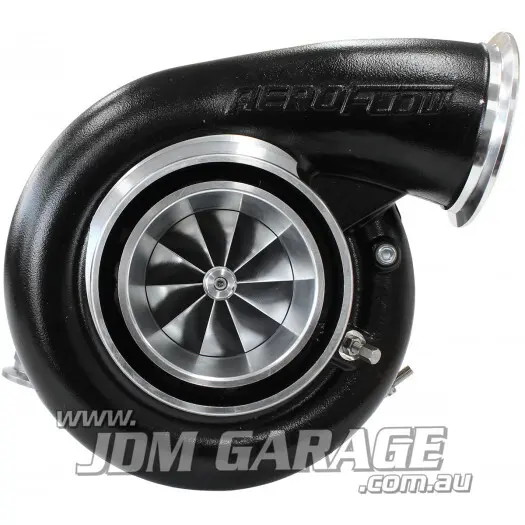

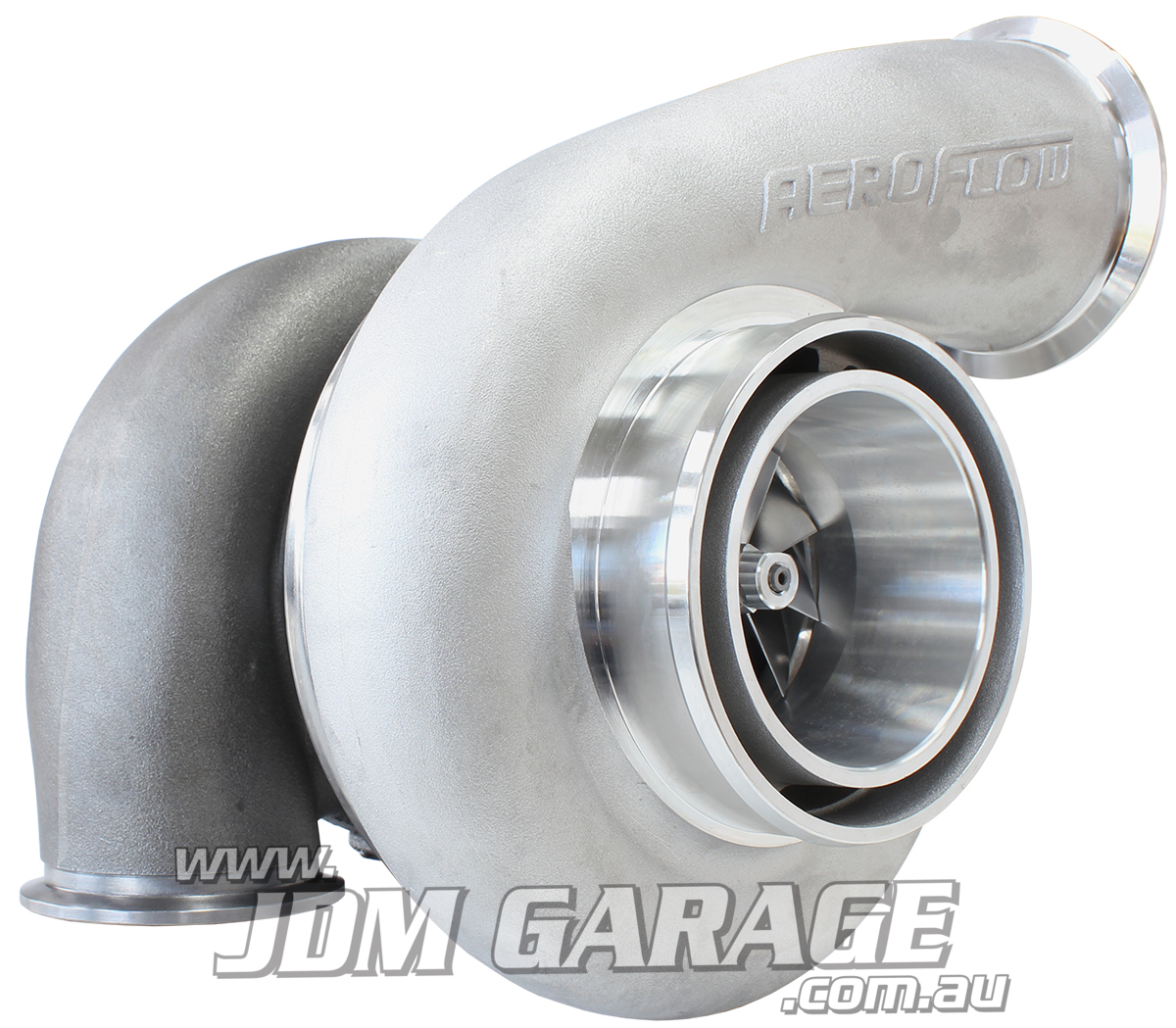

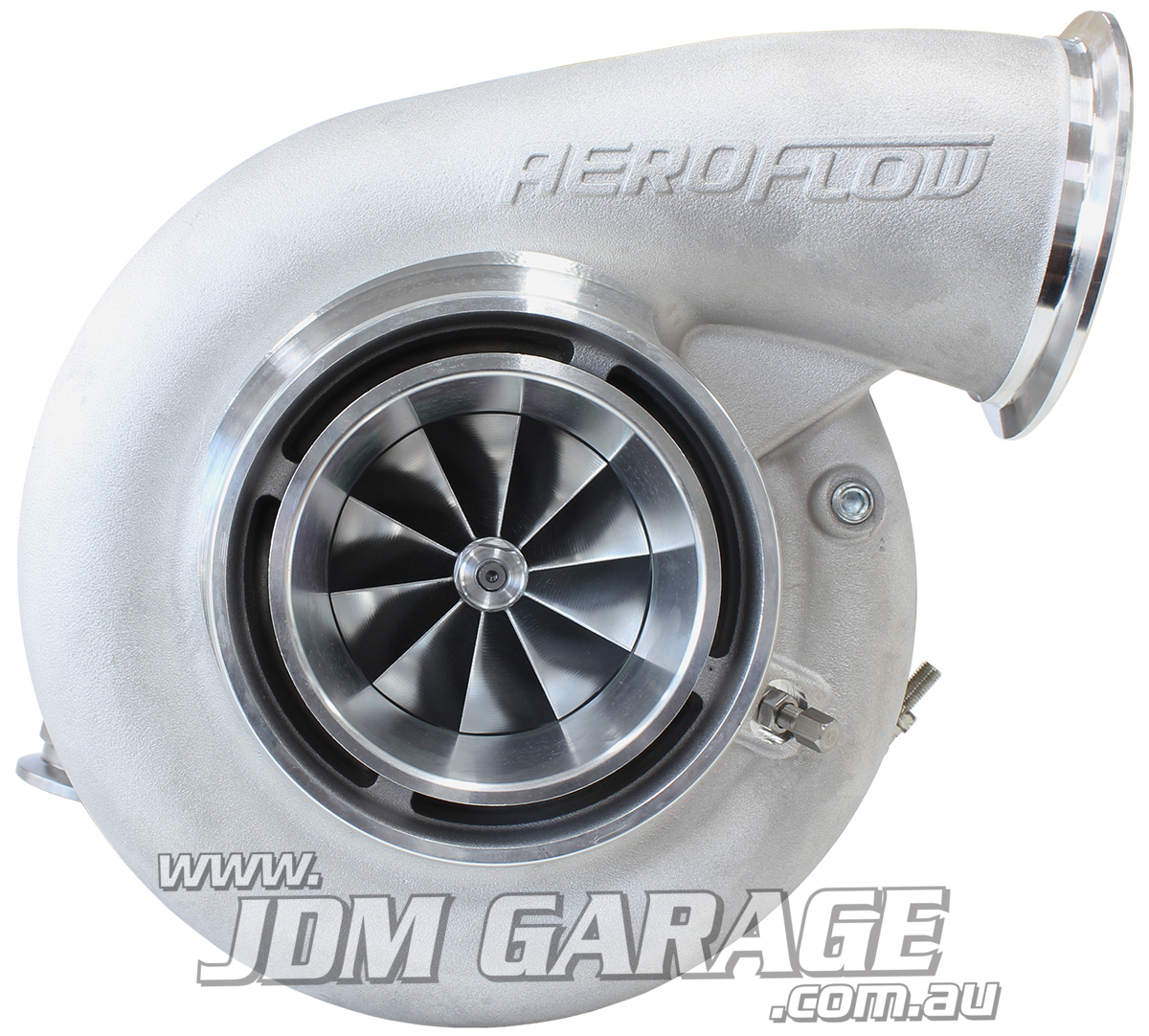

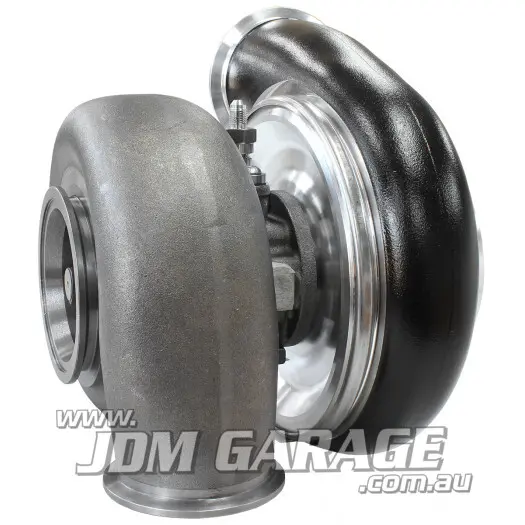

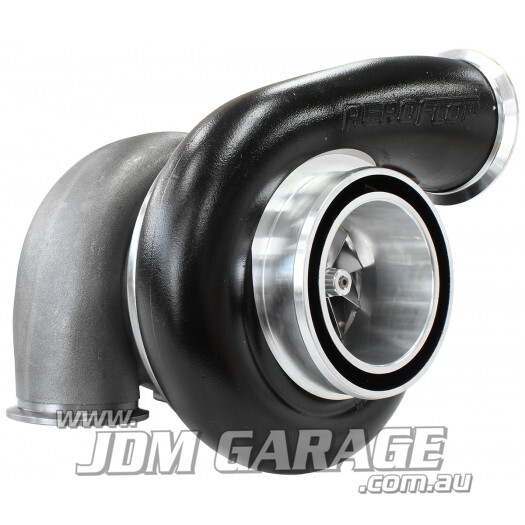

BOOSTED 7975 V-Band Turbocharger Specifications
Recommended horsepower rating: 475-1450HP
Recommended engine displacement: 2.0L to 8.0L
– Dual ceramic ball bearing
– Billet aluminium compressor wheel
– Ported shroud compressor cover
– Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
– External wastegate sold separately
– V-Band single entry turbine inlet flange
– SiMo-nodular cast iron rear housing
– V-Band turbine outlet flange
– V-Band compressor outlet flange
– M14 x 1.5mm coolant port threads (Must install water lines on opposite sides of the housing)
– 7/16-24″ oil feed fitting plate to -4AN with in-built restrictor (38mm bolt centre with M8 x 1.25mm)
– 50.8mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: 79mm
Exducer: 98mm
Extended Tip: 103mm
A/R: 0.85
Compressor Inlet: 5″ Slip fit
Compressor Outlet: V-Band (AF8080-1009)
Turbine Specifications
Inducer: 82mm
Exducer: 75mm
Available A/R: 1.01 and 1.15
Turbine Inlet Flange: V-Band (AF8080-1019)
Turbine Outlet Flange: V-Band (AF8080-1020)
Wastegate
External wastegate
