Recommended horsepower rating: 450-900HP
Recommended engine displacement: 2.0L to 4.5L
– Dual ceramic ball bearing

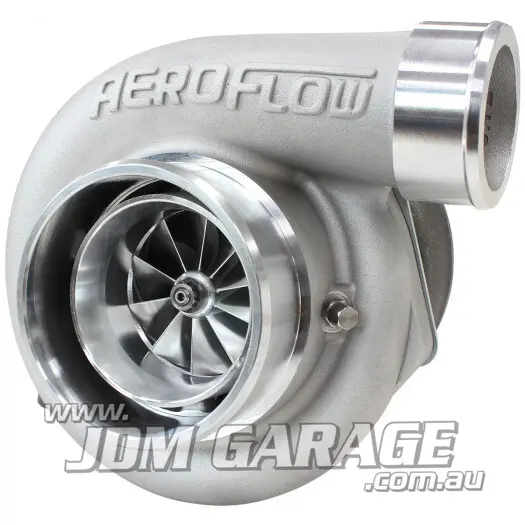

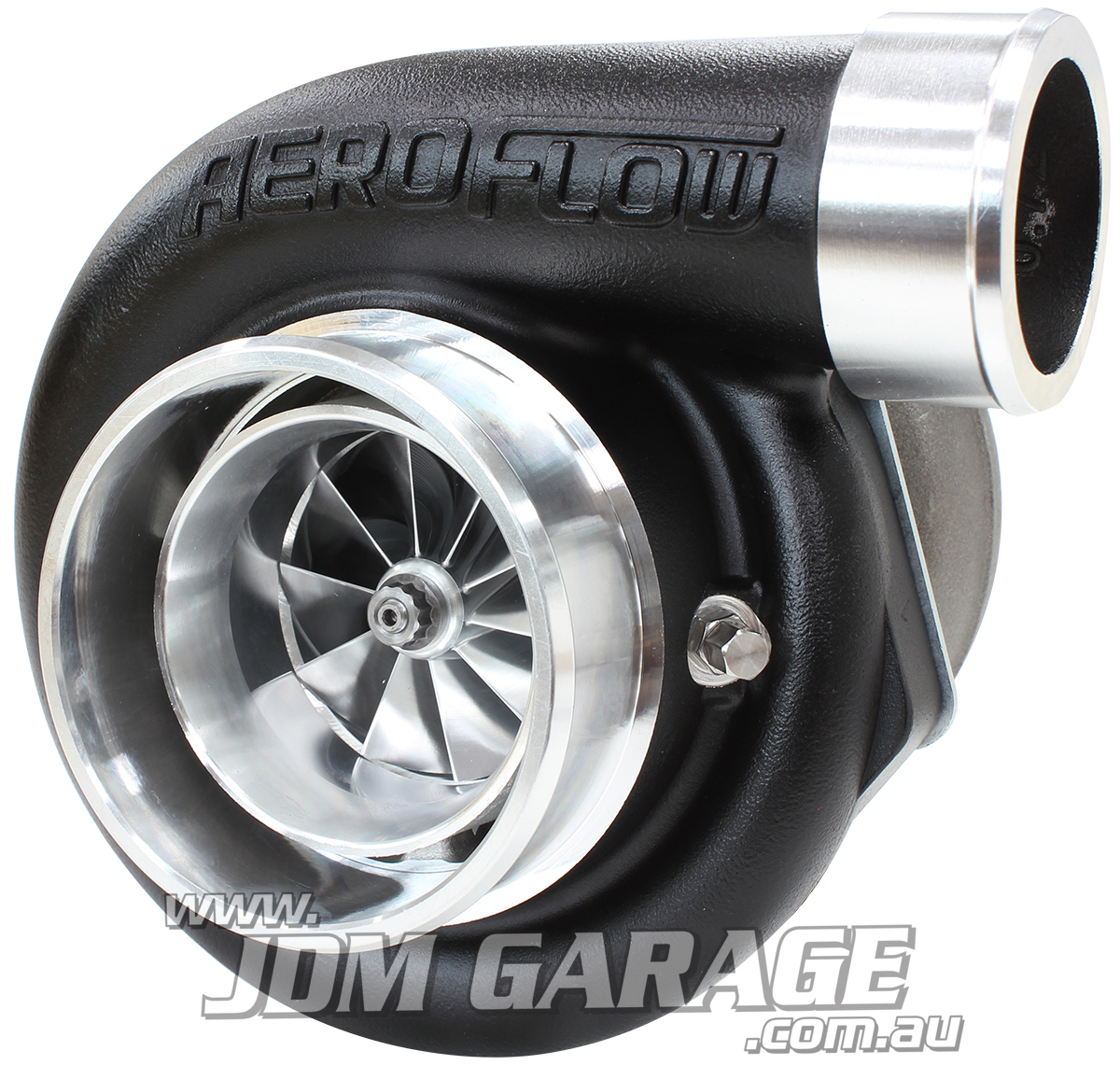

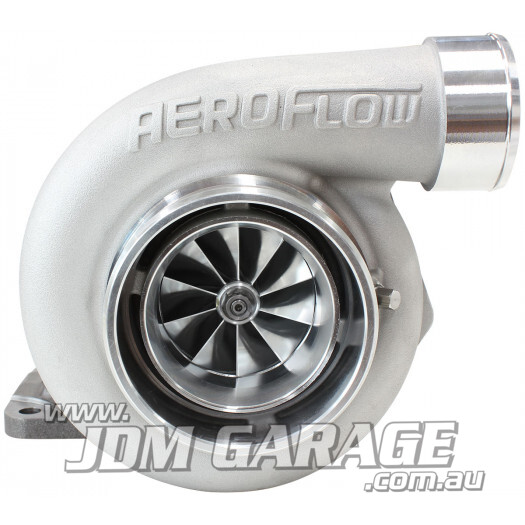

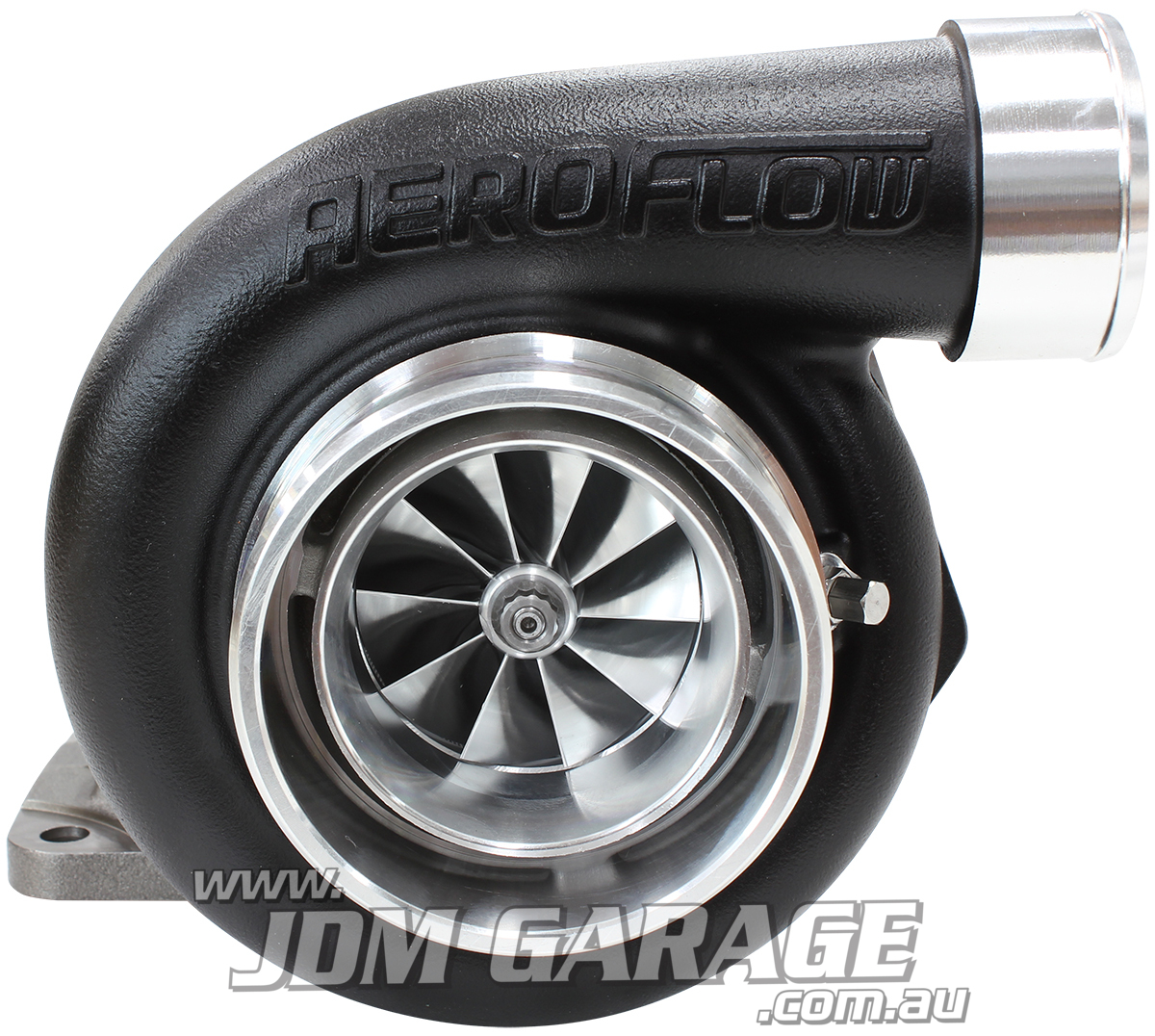

– Billet aluminium compressor wheel
– Ported shroud compressor cover
– Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
– External wastegate sold separately
– Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)

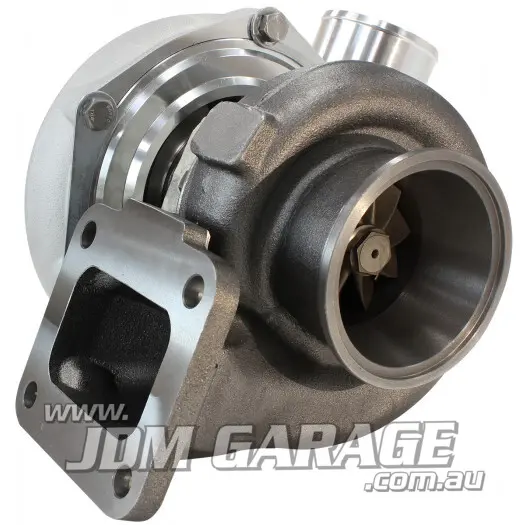

– T4 single entry turbine inlet flange
– SiMo-nodular cast iron rear housing
– V-Band turbine outlet flange
– M14 x 1.5mm coolant port thread
– 7/16″-24 oil feed fitting with in-built restrictor
– 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: 66mm
Exducer: 82mm
Extended Tip: 87.5mm
A/R: 0.72
Compressor Inlet: 4″ Slip fit
Compressor Outlet: 2.5″ Slip fit
Turbine Specifications
Inducer: 68mm
Exducer: 62.3mm
Available A/R: 0.82
Turbine Inlet Flange: T4
Turbine Outlet Flange: V-Band (AF8080-1000)
Wastegate
External wastegate
