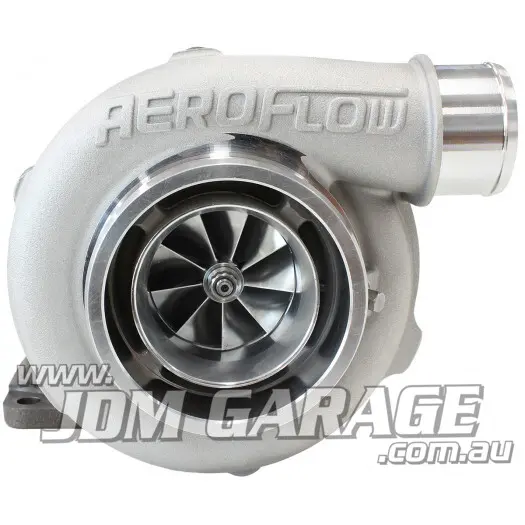

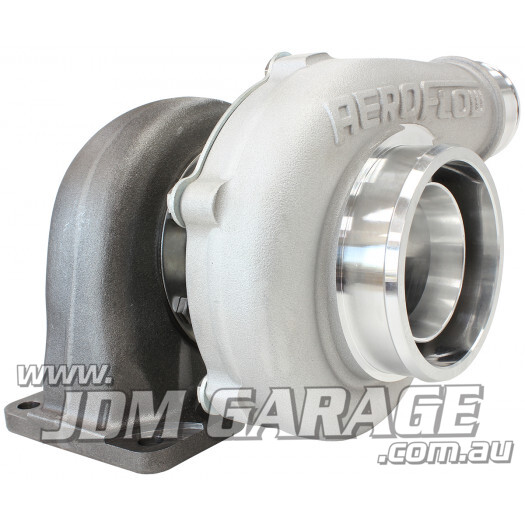

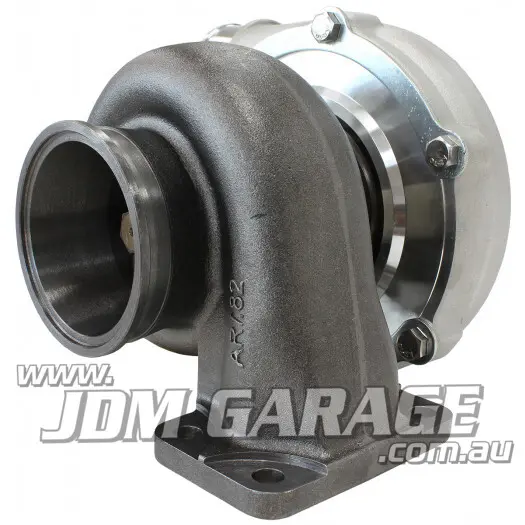

Aeroflow Boosted 5862 GTX3576R Turbocharger T3
$1,450.00 AUD Select options
Brands:Aeroflow

Aeroflow Boosted 5862 GTX3576R Turbocharger T3

$1,450.00 AUD

Clear

BOOSTED 5862 Turbocharger Specifications

Recommended horsepower rating: 400-750HP

Recommended engine displacement: 1.8L to 3L

  • Dual ceramic ball bearing
  • Billet aluminium compressor wheel
  • Ported shroud compressor housing cover
  • Speed sensor port included in compressor cover (sold separately, AF8050-1010)
  • External wastegate sold separately
  • Inlet flange single layer gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit
  • Turbine inlet gasket sold separately AF9557-0005
  • Recommended turbo drain adapter AF463-01 or AF463-05
  • M14x1.5mm coolant fittings sold separately
  • V-Band sold separately AF8080-1000

Compressor

Inducer: 58mm

Exducer: 76.2mm

Extended Tip: 80.42mm

A/R: 0.60

Turbine

Inducer: 68mm

Exducer: 62.3mm

Compressor Inlet: 4″ Slip fit

Compressor Outlet: 2.5″ Slip fit

Turbine Inlet Flange: T3

Turbine Outlet Flange: V-Band

Wastegate: External wastegate

Brand new

JDM Garage

Additional information

Weight 20 kg
Dimensions 40 × 40 × 40 cm
Condition

New

Compressor Housing Colour

Black, Natural

Rear Housing (A/R)

0.63, 0.82, 1.06
