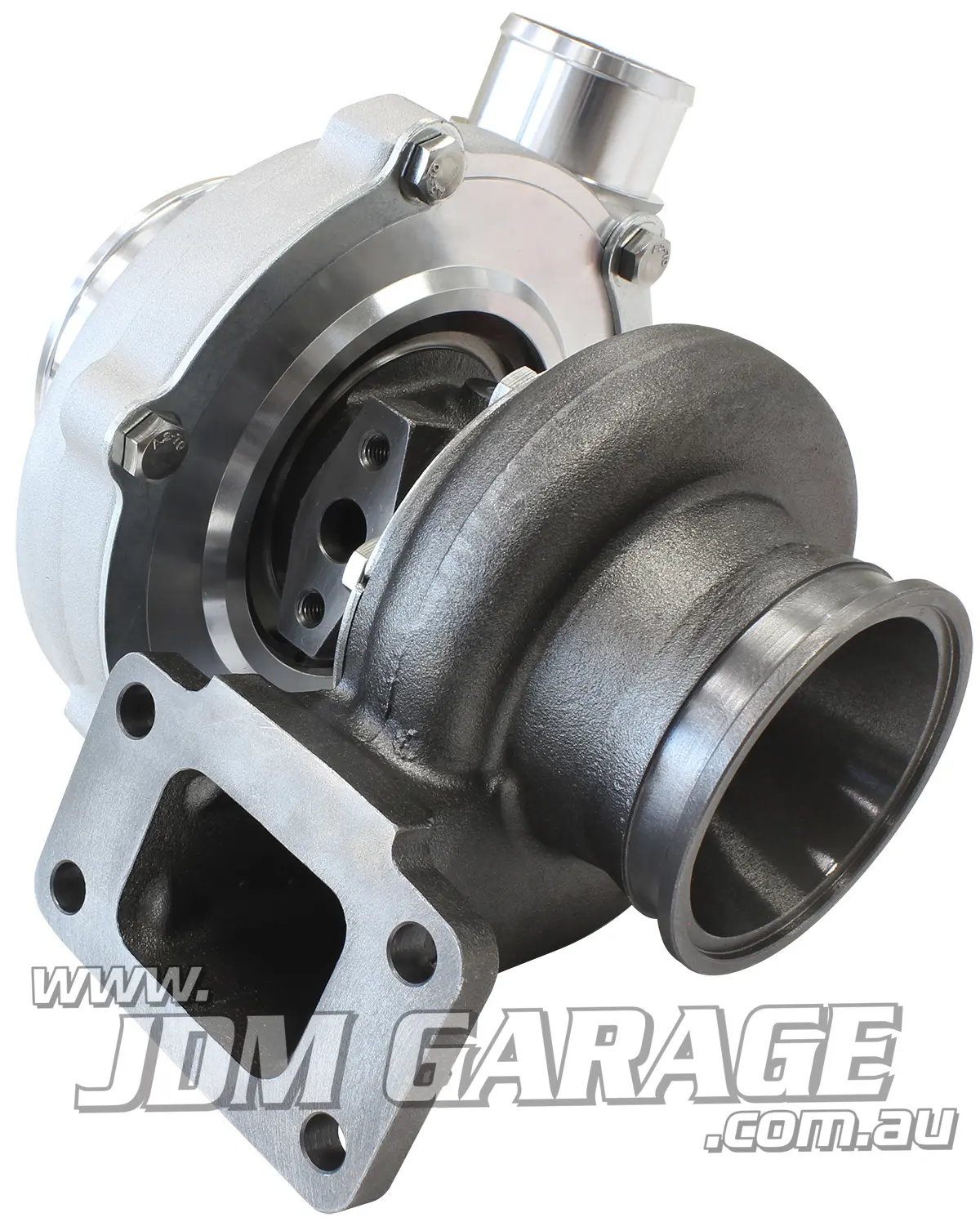

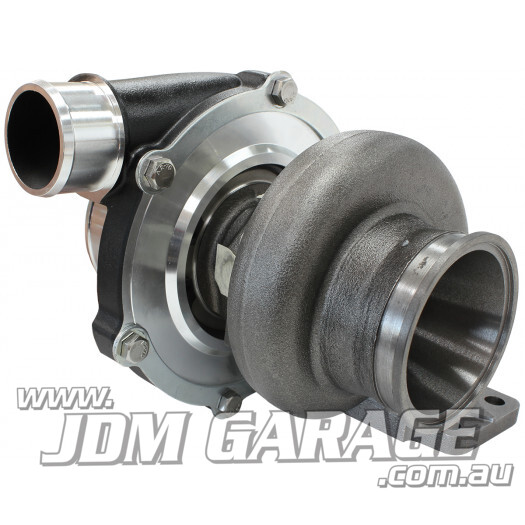

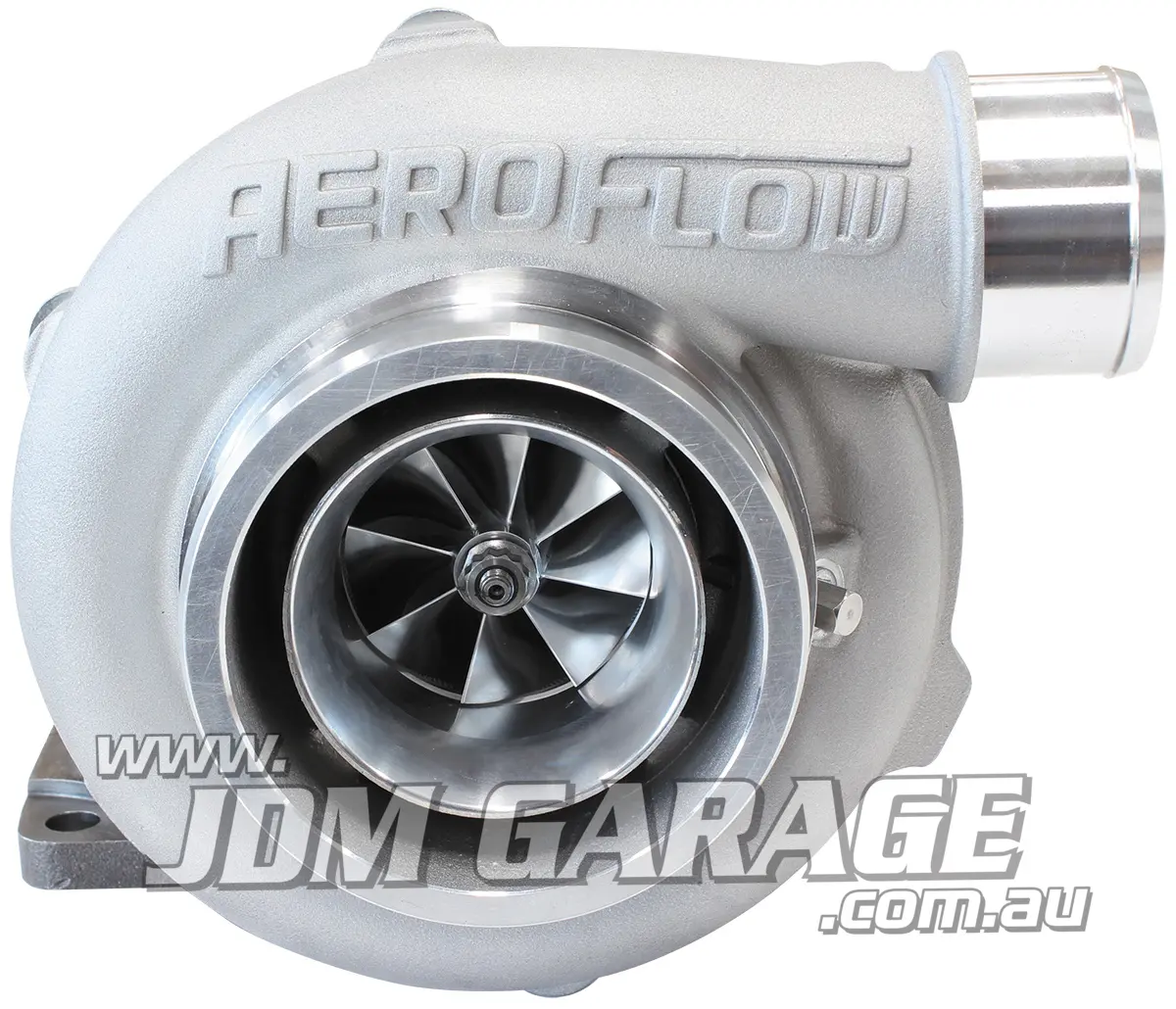

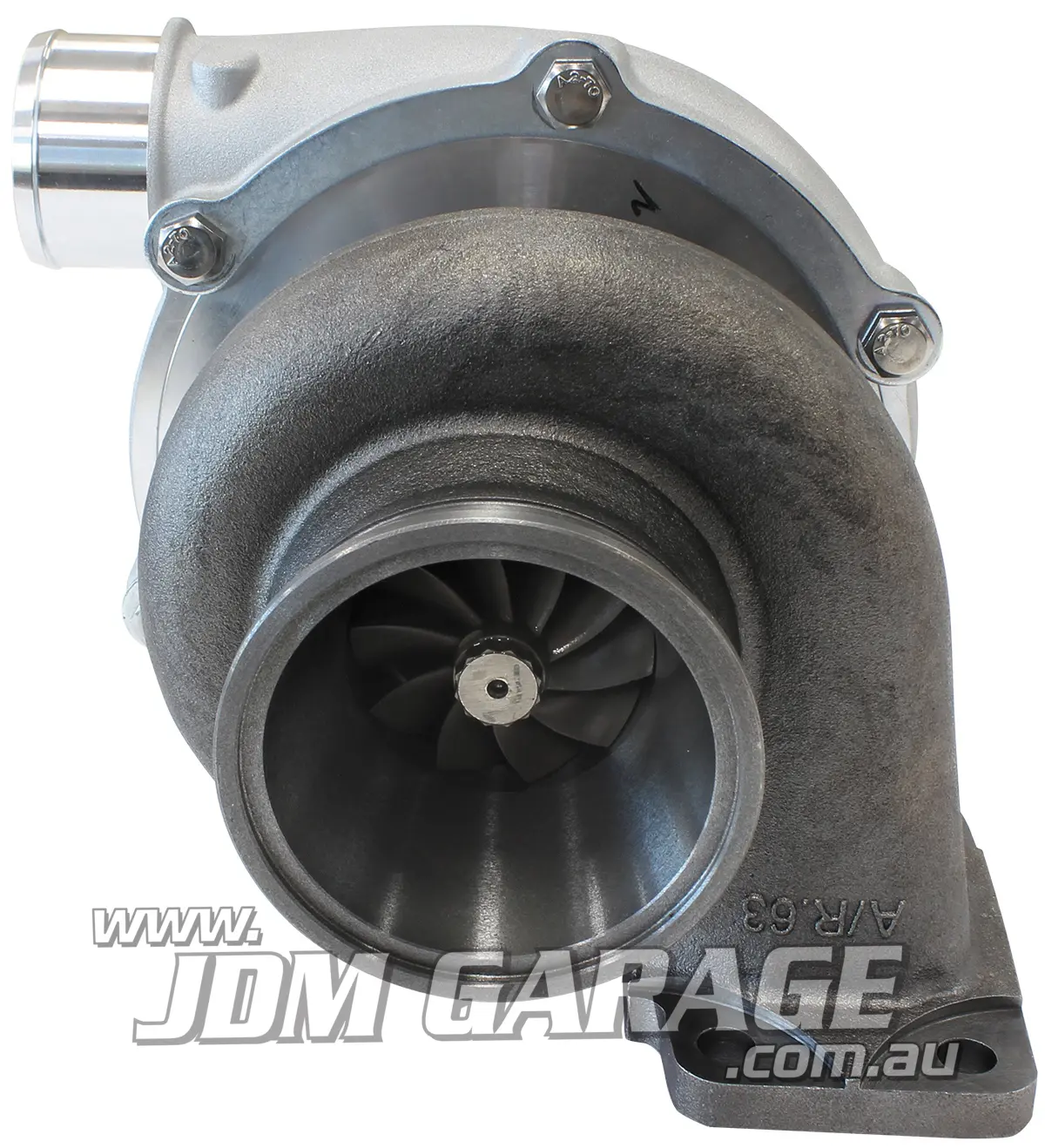

Aeroflow Boosted 5455 GTX3071R Turbocharger T3
$1,250.00$1,450.00 Select options
Brands:Aeroflow

Aeroflow Boosted 5455 GTX3071R Turbocharger T3

$1,250.00$1,450.00

Clear
  • Shipping Worldwide!
  • Click & Collect from Gold Coast, QLD
  • New & Used OEM & Aftermarket Parts
  • Australian Owned & Operated

BOOSTED 5455 Turbocharger Specifications

Recommended horsepower rating:  340-650HP
Recommended engine displacement:  1.8L to 3.0L

– Dual ceramic ball bearing
– Point Milled 7075 billet compressor wheel
– Ported shroud compressor cover
– Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
– External wastegate sold separately
– Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
– T3 single entry turbine inlet flange
– SiMo-nodular cast iron rear housing
– V-Band turbine outlet flange
– M14 x 1.5mm coolant port thread
– 7/16″-24 oil feed fitting thread
– 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer:  54mm
Exducer:  71mm
Extended Tip:  73.79mm
A/R:  0.60
Compressor Inlet:  4″ Slip fit
Compressor Outlet:  2″ Slip fit

Turbine Specifications
Inducer:  60mm
Exducer:  55mm
Available A/R:  0.63, 0.82 and 1.06
Turbine Inlet Flange:  T3
Turbine Outlet Flange:  V-Band (AF8080-1000)

Wastegate
External wastegate

Additional information

Weight 20 kg
Dimensions 40 × 40 × 40 cm
Condition

New

Compressor Housing Colour

Black, Natural

Rear Housing (A/R)

0.63, 0.82, 1.06

Turbine Inlet Flange

T3
