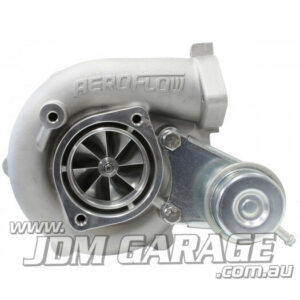

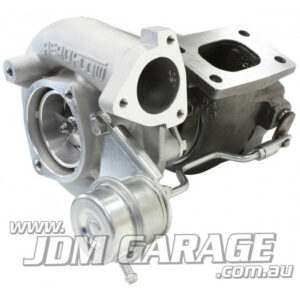

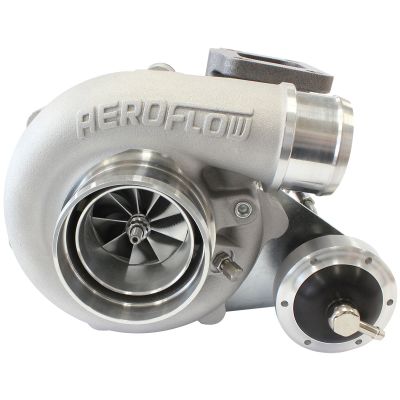

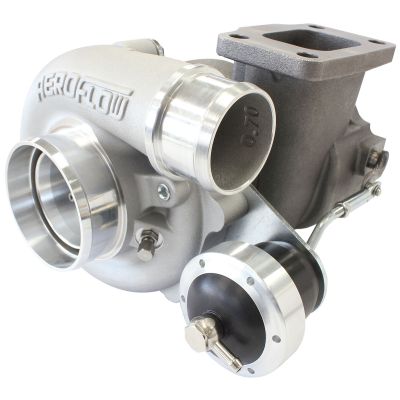

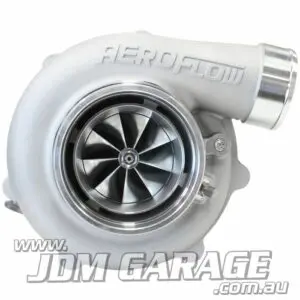

BOOSTED B5455 T3 Internal Wastegate Turbocharger Specifications
Recommended horsepower rating: 350-660HP
Recommended engine displacement: 1.4L to 3.0L
– Dual ceramicball bearing
– Point Milled 7075 billet compressor wheel
– Ported shroud compressor cover
– Speed sensor port included in compressor cover (Speed sensorsold separately, AF8050-1010)
– 1/8″ NPT boost reference port
– External wastegate sold separately

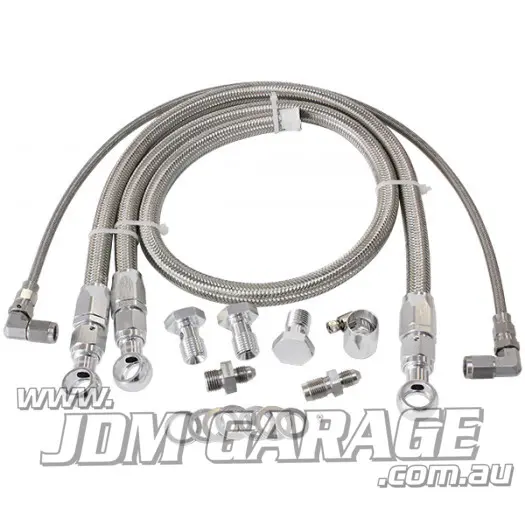

– Inlet flange gasket, turbo drain gasket and -4AN turbo oil feedfitting with restrictor included in turbo kit. (Warranty VOID if not used)
– T3 single entry turbine inlet flange
– 9blade turbine wheel
– SiMo-nodular cast iron rear housing
– 5-Bolt Ford XR6turbine outlet flange
– 4x M14 x 1.5mm coolant ports (Must install water lines on opposite sides of the core)
– 7/16″-24 oil feedfitting with in-built restrictor
– 38mm bolt centre turbo drain flange withM8 x 1.25mm thread size
-Billet Internal wastegate actuator with 9psi spring (different rate springs sold separately)
– Internal wastegate hole size is 32mm
CompressorSpecifications
Inducer: 54.25mm
Exducer: 67.40mm
Extended Tip: 69.76mm
A/R: 0.70
Compressor Inlet: 3″ Slip fit
Compressor Outlet: 2″ Slip fit

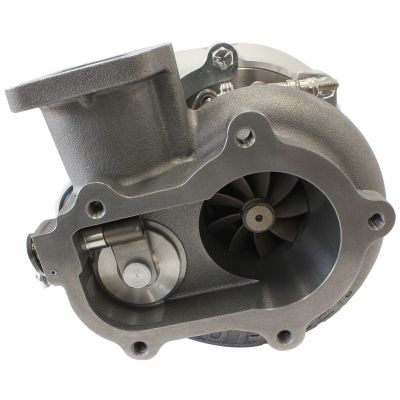

Turbine Specifications
Inducer: 60mm
Exducer: 55mm
A/R: 0.82
Turbine Inlet Flange: T3
Turbine Outlet Flange: BA-BF XR6 5-Bolt
Wastegate
Internal wastegate featuring 32mm port and 14psi actuator
