Link MXG Strada Dash Street Edition
$1,550.00$1,695.00 Select options
Sale!
Brands:Link

Link MXG Strada Dash Street Edition

$1,550.00$1,695.00

-6%

Included in the box:
Link MXG 1.2 Strada
USB cable
14 pin standard wiring
23 pin connector + contacts
Software installation CD

To use with Link plugin ECU’s – CANPCB and CANF connectors will be required (Purchased separately).

GPS module available separately.

Clear

Link Can PCB Cable

Required to add CAN/Serial communications to G4+/G4X Plugin ECU’s. Plugs directly into ECU PCB header. Use the Link CANF connector (purchased separately) to connect.

Perfect for hooking up display dash to your plug in Link ecu

Link Can F Plug

Can be used with Can PCB Cable



AIM GPS-08 Module Link

GPS module for the Link MXS and MXG Strada Dashes. 1.3m cable length.
Features:

  • Sample lap and split times as well as speed, position and acceleration - all the information needed for engine tuning as well as for improving your driving technique.
  • Supports more than 2000 tracks worldwide
  • Easy to set-up and review data using Race Studio 3
  • Connects to dual satellites for redundancy and precision
  • Simple, plug and play connection to Strada MXS & MXG Dashes
  • A GPS module also provides the dash with a speed signal. This can be particularly useful for applications where wheel speeds are not available or utilised, such as boats.

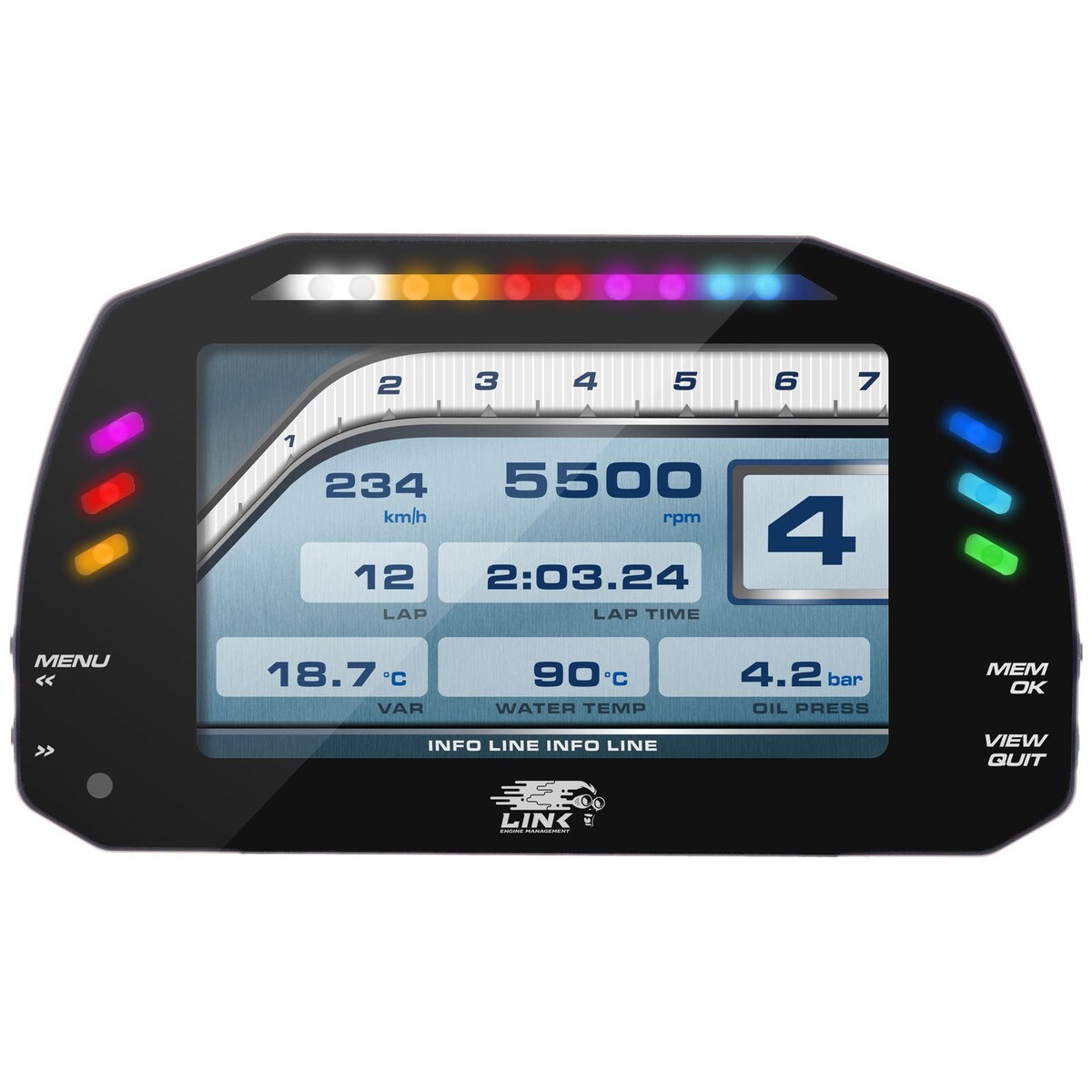

The Link MXG Strada Street Edition dash features customisable shift lights, six street icons and a high contrast TFT screen display. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display.

The 10 multi-coloured RGB shift lights on the MXS Strada can be customised to your liking to define the RPM threshold for each single gear. There are also 8 Street Icons located to the side of the screen. These include an indicator lights, headlight, high beam, check engine, oil pressure warning light, temperature warning light and fuel light.

The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all real-time information reading from the ECU such as RPM, speed, water temperature, oil pressure and much more.

The Link MXG connects directly to your Link ECU via the pin kit and wiring provided in the box.
To use with plugin ECU’s – CANPCB and CANF connectors will be required (Purchased separately).

The dash can be personalised via Link ECU PC Link and Aim Technologies Race Studio 3 software.

GPS module available separately.

Power consumption: 400 mA
Dash Dimensions: 237×127.6×26 mm
Weight: 950 g
Waterproof: IP65

Additional information

Weight 3 kg
Dimensions 30 × 25 × 15 cm
Screen Size

5 Inch, 7 Inch
