FPG In-Tank Surge Tank Kit R32 GTR Track Edition

$1,314.00$1,424.00 AUD

Walbro 525 Fuel Pump E85

525L/HR

Kit includes:
1x Genuine Walbro 525 Pump
1x Electrical Connector
1x Universal Strainer
1x Walbro Box

Walbro 460 Fuel Pump High Pressure

Kit includes:
1x Genuine Walbro 460 Pump
1x Electrical Connector
1x Universal Strainer
1x Walbro Box

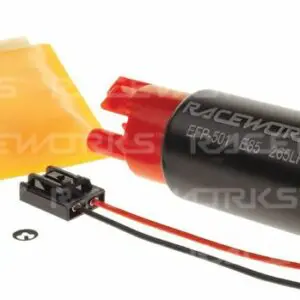

Raceworks Raceworks E85 265Lph@4Bar High Flow Pump

265LPH @ 4bar (12V). For flow details at and current draw 13.5V please consult chart below. 38mm Pump Diameter. Internal Check Valve. Includes 90deg Strainer as pictured.

Out of stock

  • Shipping Worldwide!
  • Click & Collect from Gold Coast, QLD
  • New & Used OEM & Aftermarket Parts
  • Australian Owned & Operated

Due to increasing needs in fuelling requirements, we have developed a full “in-tank surge tank kit” and these have been track tested in several customer cars in various applications: drifting, circuit racing and high performance street driving with excellent results!

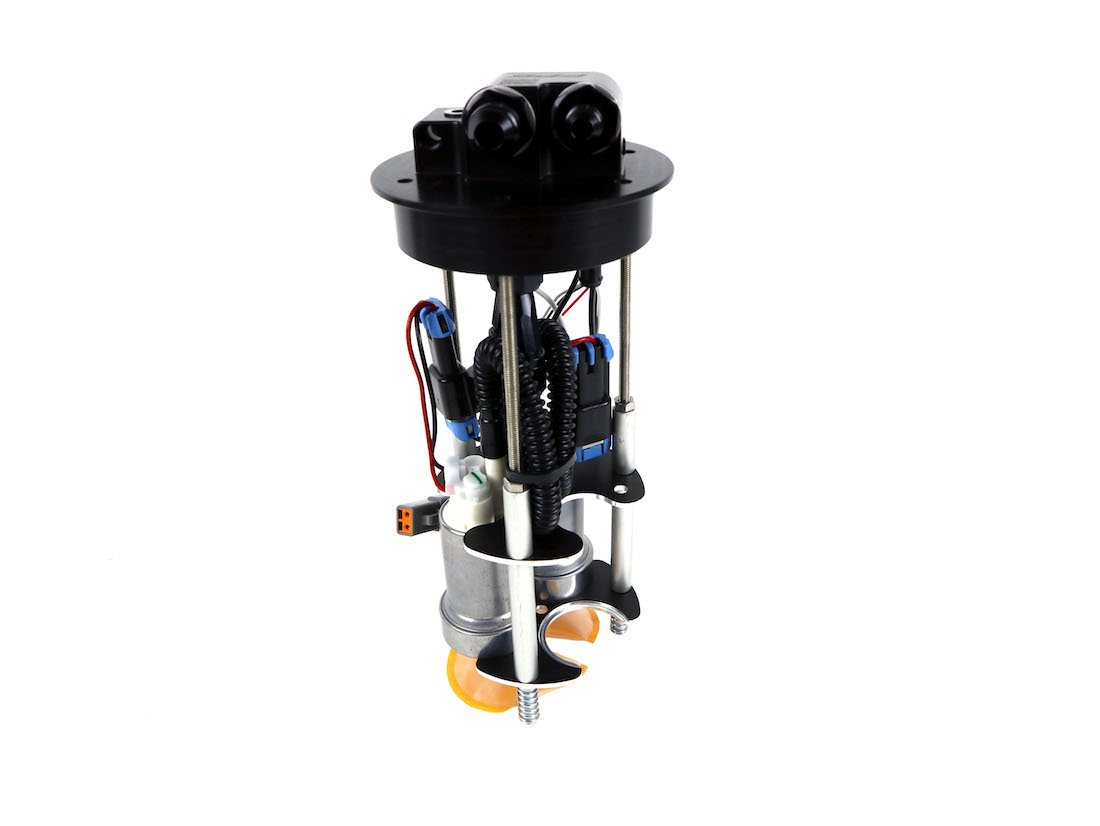

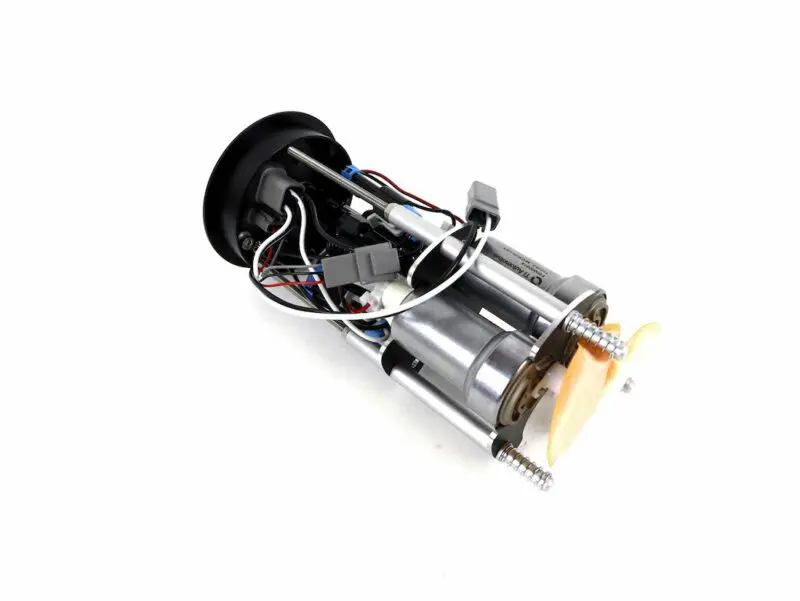

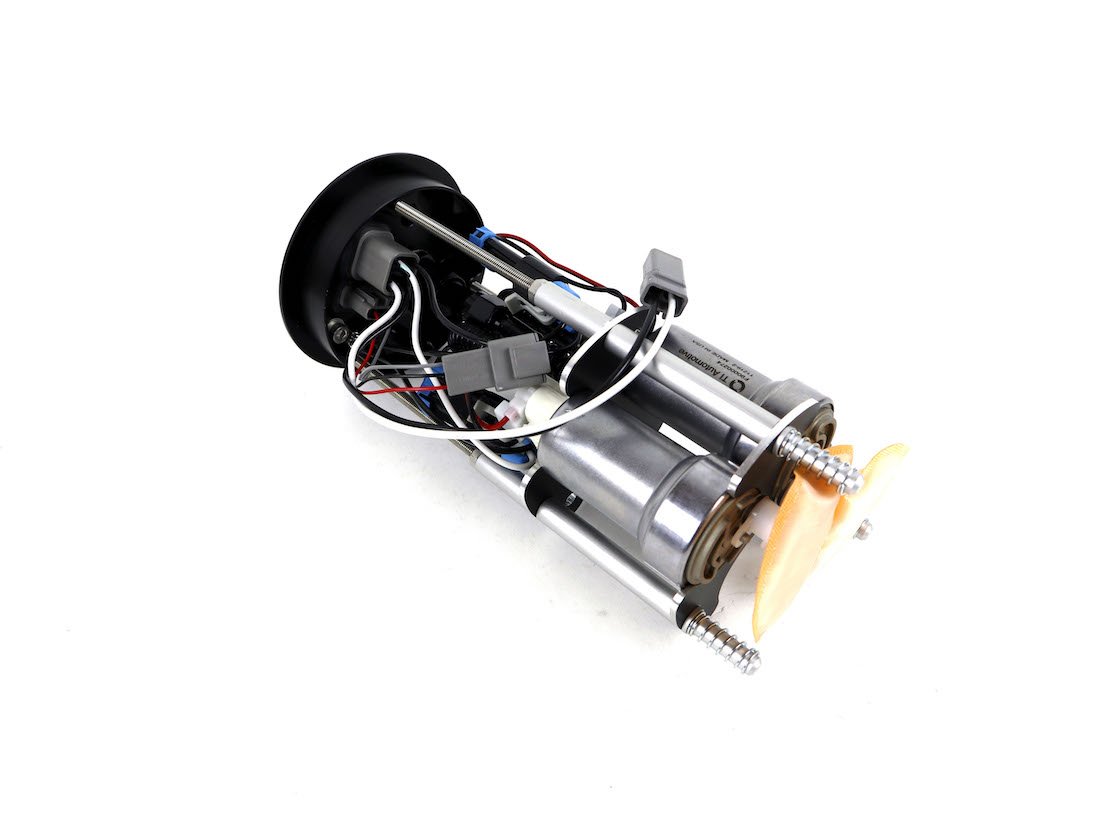

This new FPG kit features a stainless steel surge tank, with cnc machined billet components which allow the installation of 1 or 2 fuel pumps inside. The surge tank has a mounting bracket for a lift pump, which ensures the pot is filled with fuel at all times, even when the fuel tank is running low.

An all new Nissan fuel level sender is included, so your factory fuel gauge will work. It can also be used with aftermarket dashes and displays with the correct calibration.

All the components are anodised and alcohol fuel compatible, and the fuel hoses have been switched to fuel tubes for longer service life an OEM finish.

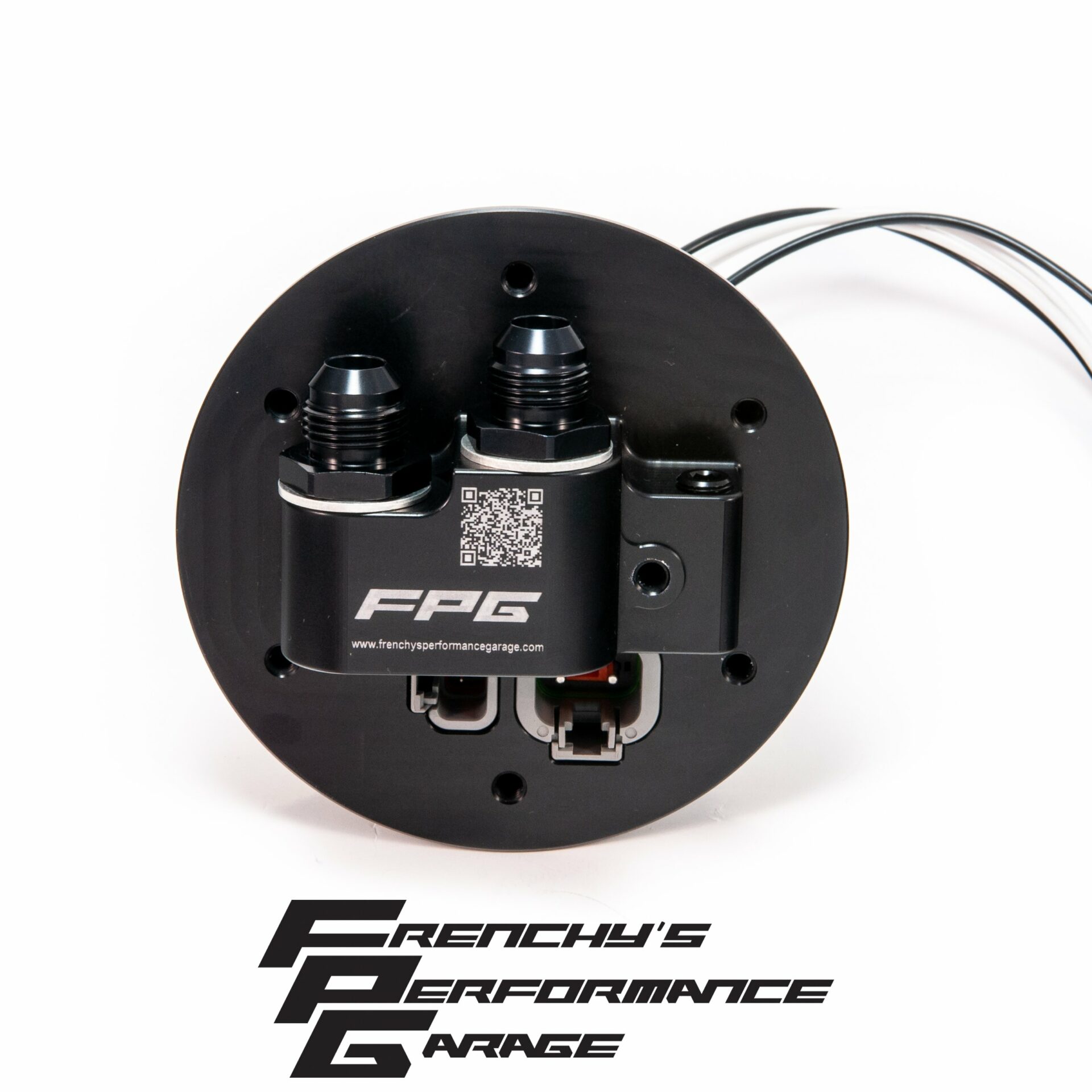

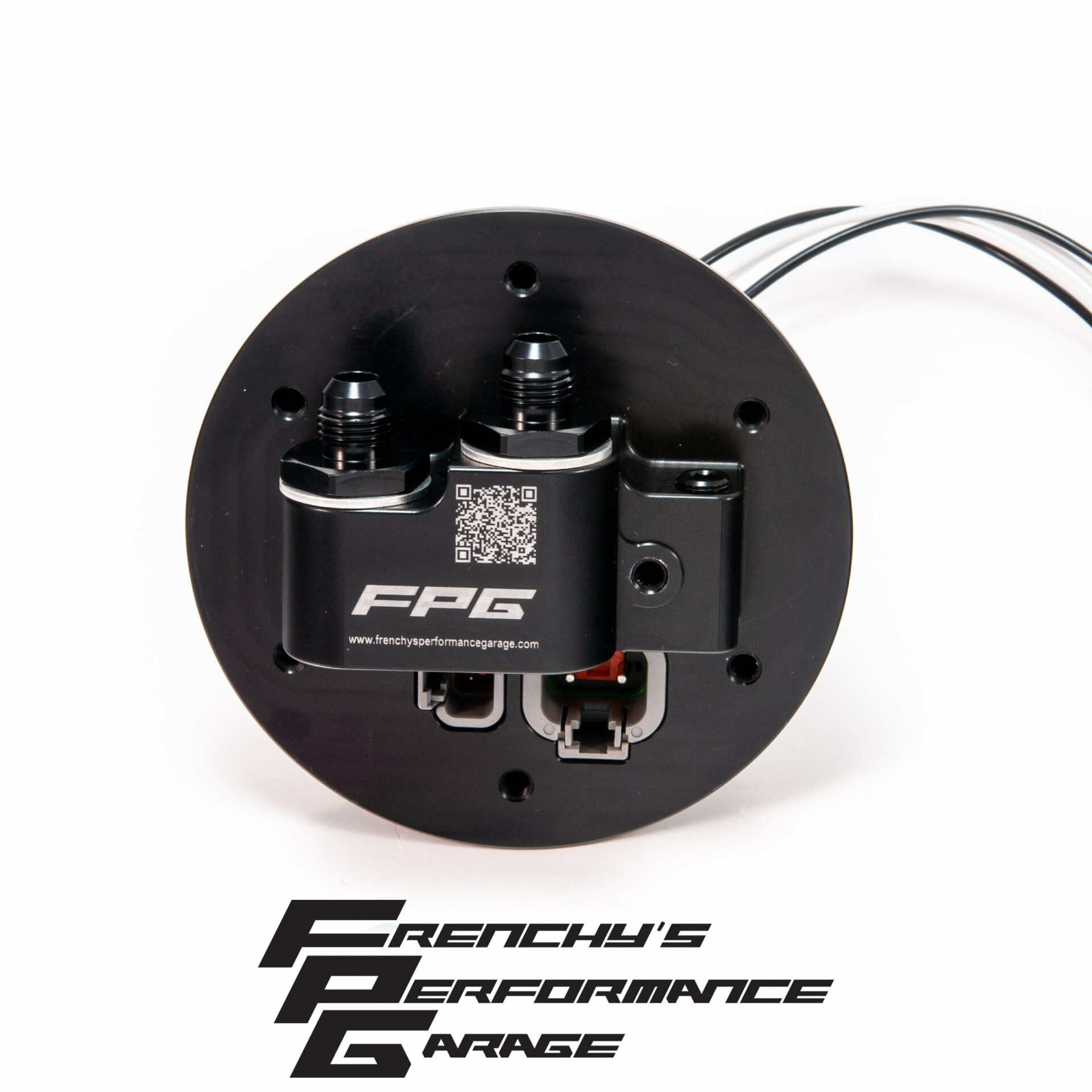

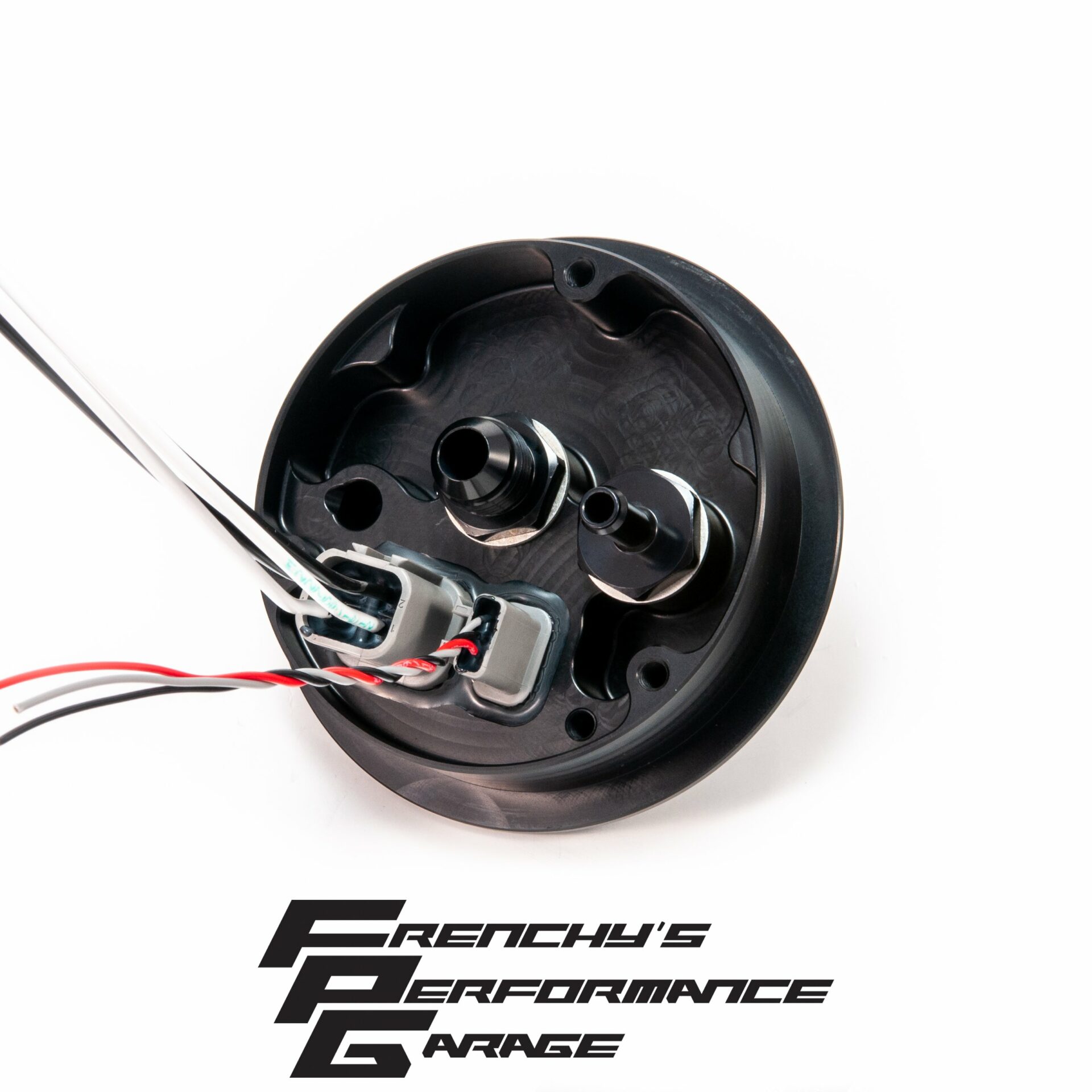

The hat has been completely redesigned and allows you to choose and change fitting style and size easily, and we offer options up to AN10! It also features built-in Deutsch connectors and tefzel wiring as well as a grounding point within the hat to allow high current draws and multiple pump wiring and triggering options.

The brackets are designed around the Walbro 460/525 E85 pumps (Available for purchase separately in the “fuel pump” section). The lift pump can be any 39mm body fuel pump.

The kit comes with the pump strainers and connectors, and the Deutsch connectors to connect to the hat.

(No modifications to the fuel tank required)

Additional information

Weight 3 kg
Dimensions 21 × 21 × 49 cm
Chassis

,

Fuel Feed Size

, , ,

Fuel Return Size

, , ,

Fuel Pump Configuration

,
