FPG Single Pump Kit Hanger S13 R32 V2

FPG Single Pump Kit Hanger S13 R32 V2

$650.00

The best drop in option for your S13/180SX/R32 to install a high flow pump.

Clear

Walbro 525 Fuel Pump E85

525L/HR

Kit includes:
1x Genuine Walbro 525 Pump
1x Electrical Connector
1x Universal Strainer
1x Walbro Box

Walbro 460 Fuel Pump High Pressure

Kit includes:
1x Genuine Walbro 460 Pump
1x Electrical Connector
1x Universal Strainer
1x Walbro Box

  • Shipping Worldwide!
  • Click & Collect from Gold Coast, QLD
  • New & Used OEM & Aftermarket Parts
  • Australian Owned & Operated

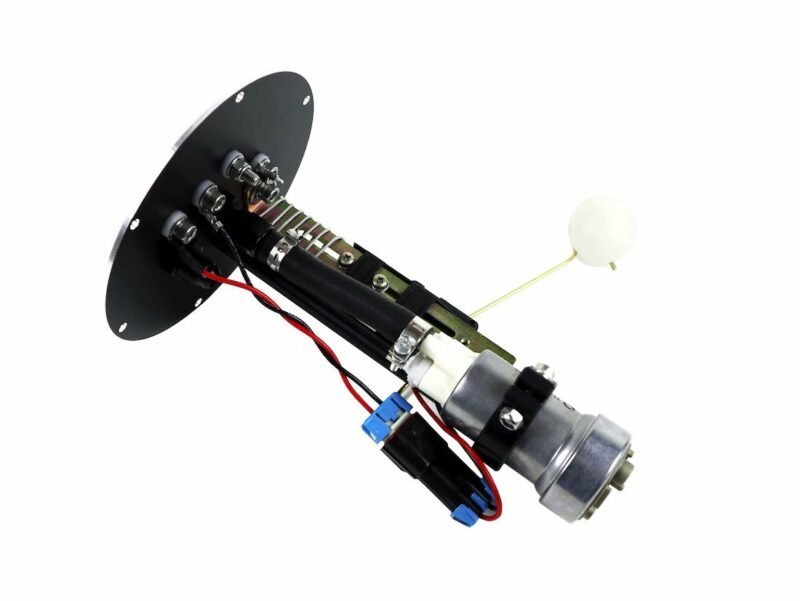

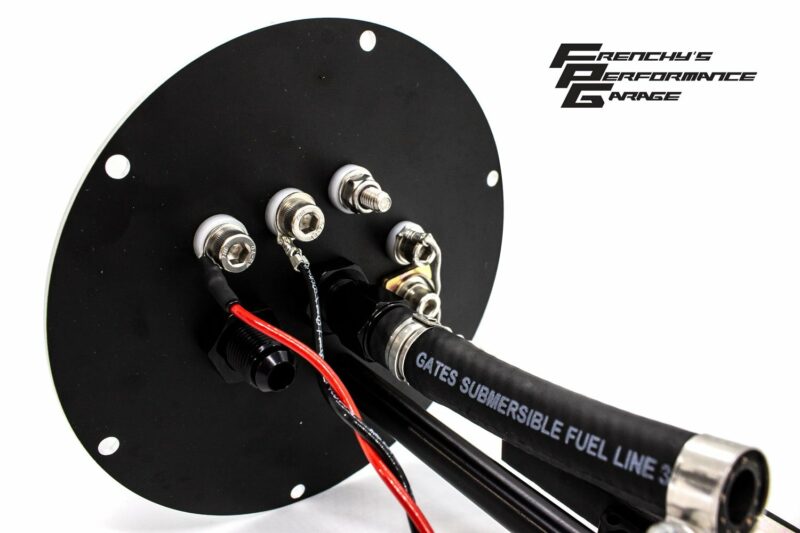

The best drop in option for your S13/180SX/R32 to install a high flow pump. Designed to hold any 39mm body pump, comes with low profile AN6 fittings. Fuel level sender is designed to work with the factory cluster.

6mm high current terminals allows you to power high flow pumps, just upgrade the wiring on the chassis side and connect!

Components are machined locally in Australia, and the kits only use the best quality parts such as Genuine Delphi connectors, Speedflow fittings, and German made stainless steel clamps. Wires are Teflon coated military spec for added reliability.

Designed to suit Walbro 460 or 525 fuel pumps. Will also suit all 39mm round fuel pumps

Kit includes the following

  • FPG top fuel hat
  • FPG fuel level sensor
  • Fuel pump strainer
  • Walbro connector making installation quick and easy (plug can be removed if you wish to run a different pump)
  • Choose from straight or 90 degree AN6 bulkheads

Suits the following

  • S13 Silvia 180sx
  • R32 GTST/GTS/GTS4

**FUEL PUMP NOT INCLUDED





Additional information

Weight 2 kg
Dimensions 30 × 25 × 40 cm
Chassis

180sx, R32, S13

Inlet and Outlet Fittings

AN6 Male 90 Degree, AN6 Male Straight
