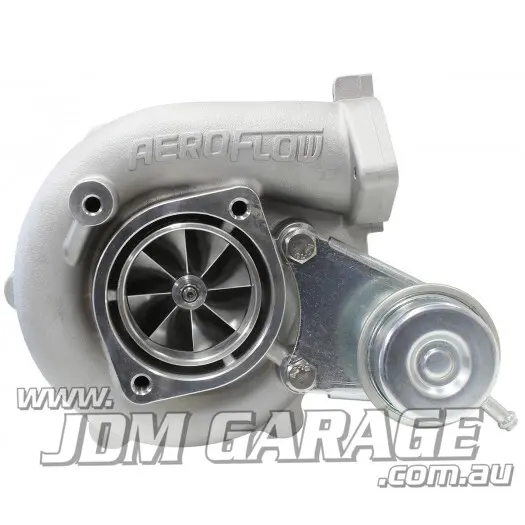

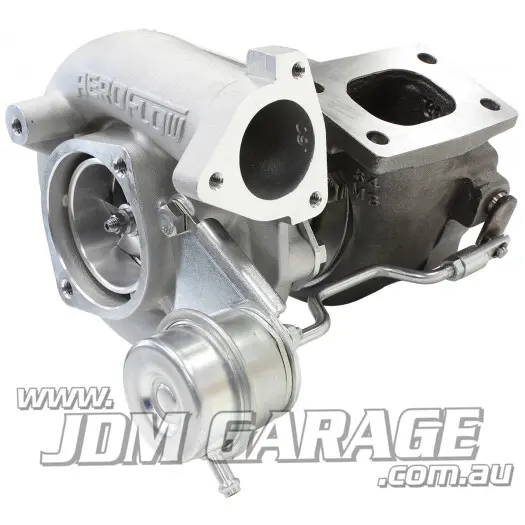

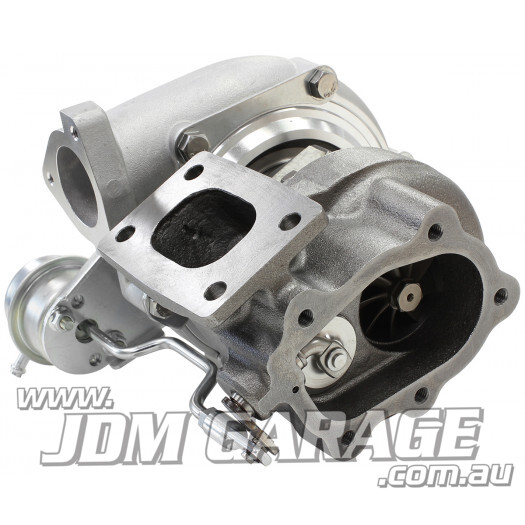

BOOSTED 5447 NISSAN Turbocharger Specifications
Recommended horsepower rating: 250-525HP
Recommended engine displacement: 1.8L to 3.0L
– Dual ceramicball bearing
– Billet aluminium compressor wheel
– Nissan S14 / S15 2-Bolt compressor cover inlet
– Nissan S14 / S15 3-Bolt compressor cover outlet
– T25 / T28 singleentry turbine inlet flange
– Aftermarket oil feed line & turbo line restrictor must be used with this turbo
– Will suit standard coolant lines or M14 x 1.5mm coolant fittings sold separately
– Will suit standard turbo drain or turbo drain adapter (Sold separately, AF463-01 or AF463-05)
– 5-Bolt Nissanturbine outlet flange (M8 x 1.25mm thread size)
– SiMo-nodular cast iron rear housing
– M14 x 1.5mm coolant fitting port thread
– 7/16″-24 oil feedfitting with in-built restrictor MUST BE USED
– 38mm boltcentre turbo drain plate with M8 x 1.25mm thread size
-Internal wastegate with 8.7psispring
Compressor Specifications
Inducer: 54mm
Exducer: 71mm
Extended Tip: 73.79mm
A/R: 0.60
Compressor Inlet: Nissan S14 / S15 2-Bolt
Compressor Outlet: Nissan S14 / S15 3-Bolt
Turbine Specifications
Inducer: 53.9mm
Exducer: 47mm
A/R: 0.64
Turbine Inlet Flange: T25 / T28
Turbine Outlet Flange: 5-Bolt
Wastegate
Internal wastegate with 8.7psi actuator
