Link MXG Strada Dash Race Edition
$1,550.00$1,695.00 Select options
Sale!
Brands:Link

Link MXG Strada Dash Race Edition

$1,550.00$1,695.00

-6%

Included in the box:

Link MXG 1.2 Strada

USB cable

14 pin standard wiring

23 pin connector + contacts

Software installation CD

To use with Link plugin ECU’s – CANPCB and CANF connectors will be required (Purchased separately).

GPS module available separately.

Clear

Link Can PCB Cable

Required to add CAN/Serial communications to G4+/G4X Plugin ECU’s. Plugs directly into ECU PCB header. Use the Link CANF connector (purchased separately) to connect.

Perfect for hooking up display dash to your plug in Link ecu

Link Can F Plug

Can be used with Can PCB Cable



AIM GPS-08 Module Link

GPS module for the Link MXS and MXG Strada Dashes. 1.3m cable length.
Features:

  • Sample lap and split times as well as speed, position and acceleration - all the information needed for engine tuning as well as for improving your driving technique.
  • Supports more than 2000 tracks worldwide
  • Easy to set-up and review data using Race Studio 3
  • Connects to dual satellites for redundancy and precision
  • Simple, plug and play connection to Strada MXS & MXG Dashes
  • A GPS module also provides the dash with a speed signal. This can be particularly useful for applications where wheel speeds are not available or utilised, such as boats.

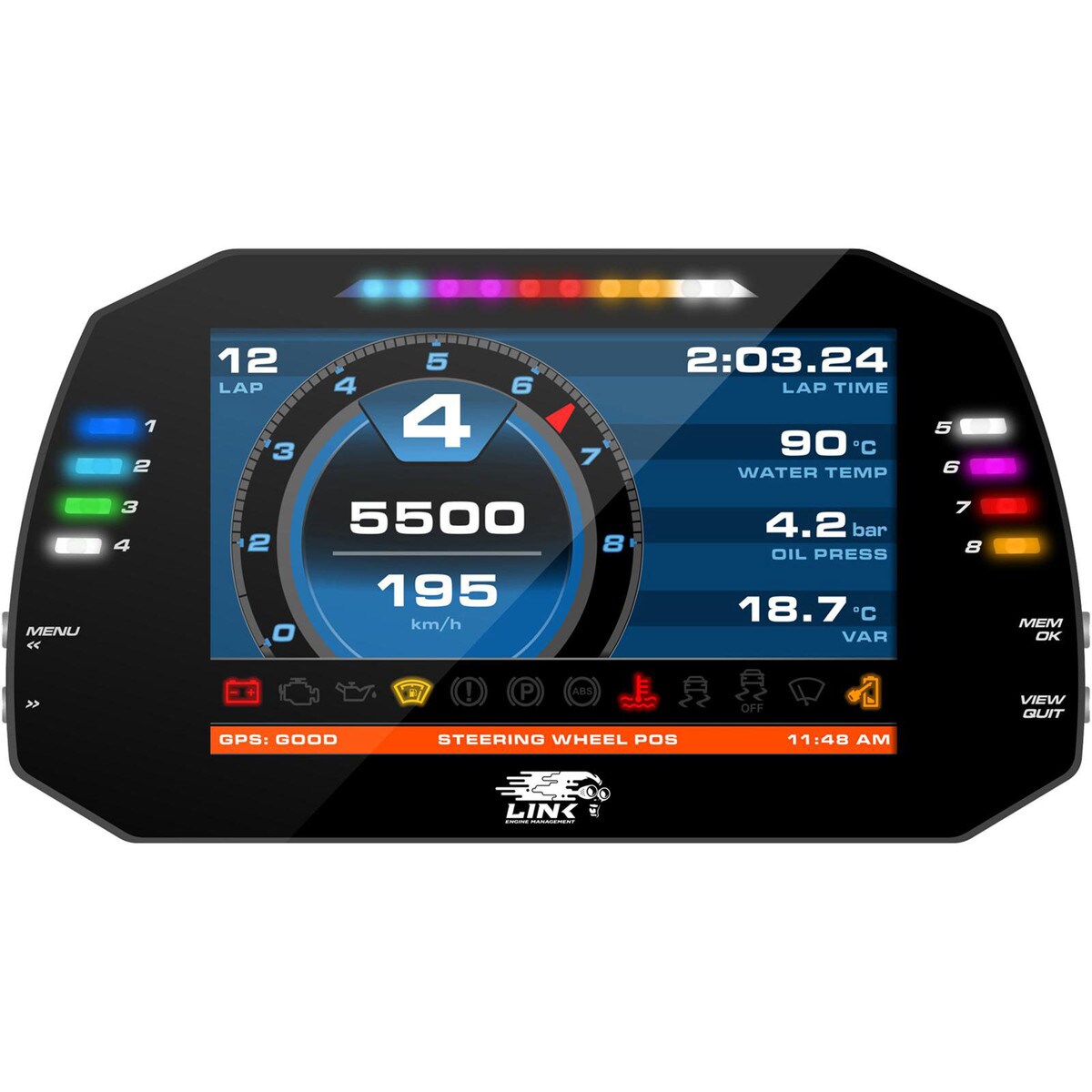

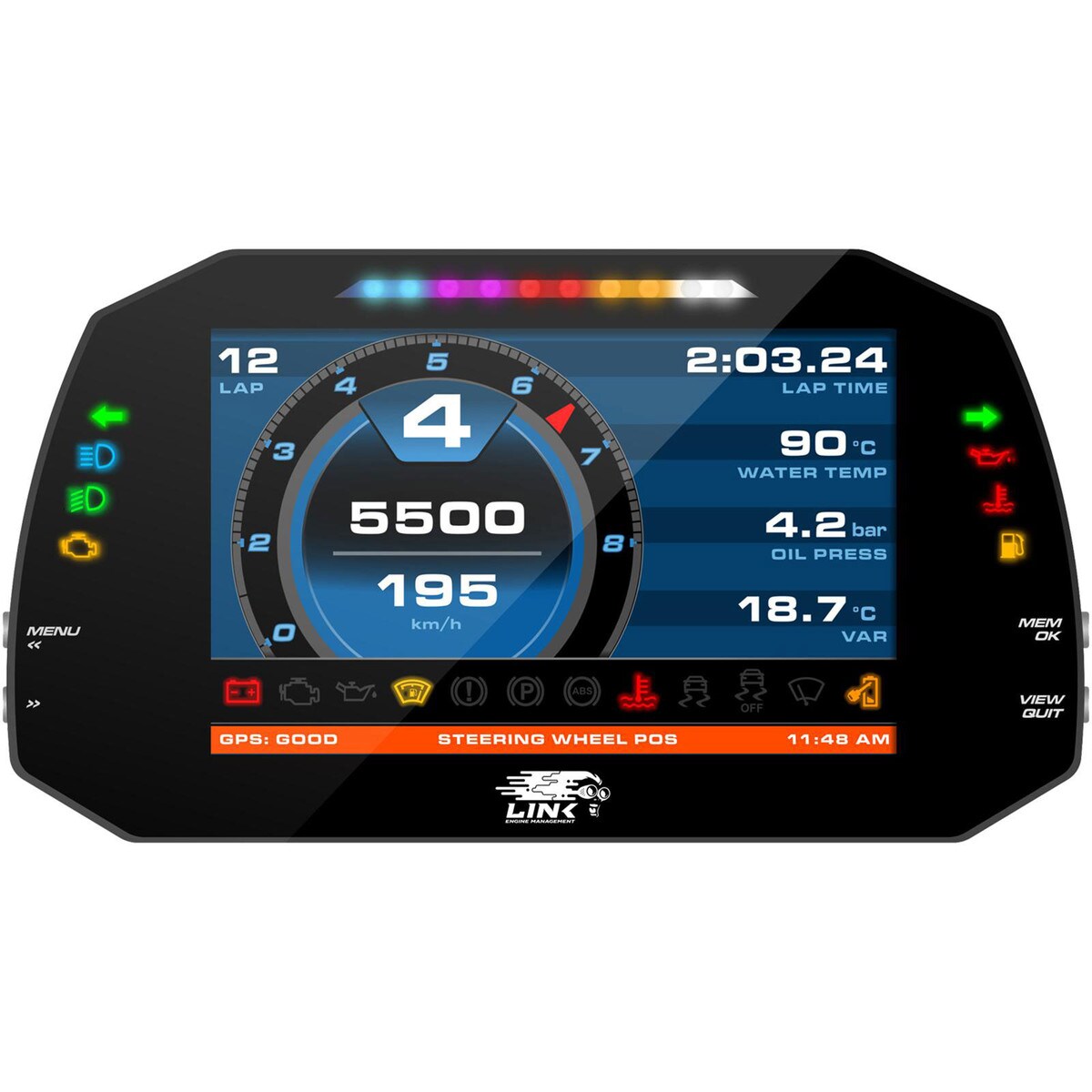

The Link MXG Strada Race Edition dash features customisable shift lights, eight flexible alarm LED’s and a high contrast TFT screen display. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display.

The 10 multi-coloured RGB shift lights on the MXG Strada can be customised to your liking to define the RPM threshold for each single gear.

The same flexibility applies to the eight configurable RGB alarm LED’s. You can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or, optionally, GPS information (GPS module available). You choose conditions and colours and you can select a solid alarm or flashing one and the flashing frequency. It is also possible to configure an accompanying text message along with the alarm priorities.

The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all real-time information reading from the ECU such as RPM, speed, water temperature, oil pressure and much more.

The Link MXG connects directly to your Link ECU via the pin kit and wiring provided in the box.

The dash can be personalised via Link ECU PC Link and Aim Technologies Race Studio 3 software.

The Link MXS connects directly to your Link ECU via the pin kit and wiring provided in the box.

To use with plugin ECU’s – CANPCB and CANF connectors will be required (Purchased separately).



GPS module available separately.

Power consumption: 400 mA

Dash Dimensions: 237×127.6×26 mm

Weight: 950 g

Waterproof: IP65

Additional information

Weight 3 kg
Dimensions 30 × 25 × 15 cm
Screen Size

5 Inch, 7 Inch
