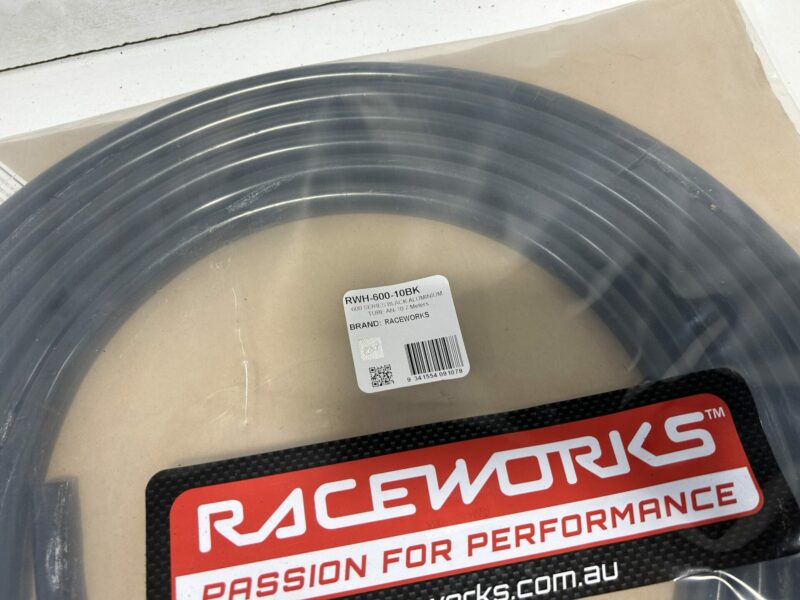

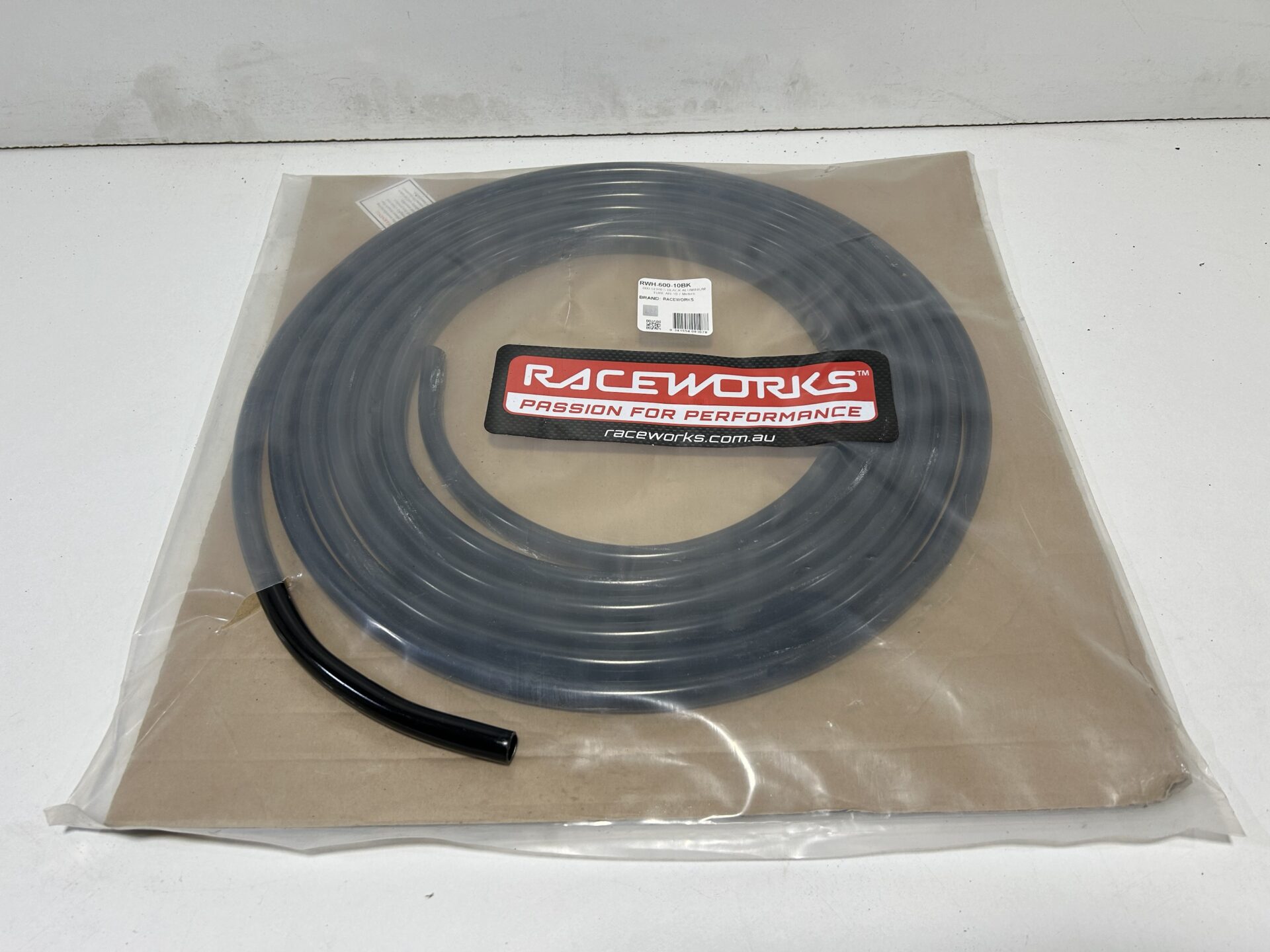

Raceworks Aluminium Hard Line


Price is for 7 metre Length


Raceworks 600 Series Hard Line is extruded from lightweight, seamless aluminium tube, and is available in four sizes. Can be used with our tube straightener RWT-014
Wall Thickness of 1mm. Ethanol and Methanol Safe.

7M Length Part Number AN Operating Pressure Burst Pressure Inside dia Inch Inside dia mm Outside dia Inch Outside dia mm Weight (gm/m) Finish
RWH-600-05 -5 1400psi 2100psi 15/64″ 5.9mm 5/16″ 7.9mm 61g Raw
RWH-600-06 -6 1100psi 1700psi 19/64″ 7.5mm 3/8″ 9.5mm 75g Raw
RWH-600-08 -8 550psi 1100psi 27/64″ 10.7mm 1/2″ 12.7mm 104g Raw
RWH-600-10 -10 420psi 550psi 35/64″ 13.9mm 5/8″ 15.8mm 128g Raw

Additional information

Weight 5 kg
Dimensions 30 × 30 × 20 cm


AN Size

-10, -8, -6, -5
