Raceworks Push Lock Rubber Hose
$19.99$34.99 Select options
Brands:Raceworks

Raceworks Push Lock Rubber Hose

$19.99$34.99

Price is per metre. If you need 5 metres select a quantity of 5.
Suits 400 Series Hose Ends

Clear
  • Shipping Worldwide!
  • Click & Collect from Gold Coast, QLD
  • New & Used OEM & Aftermarket Parts
  • Australian Owned & Operated

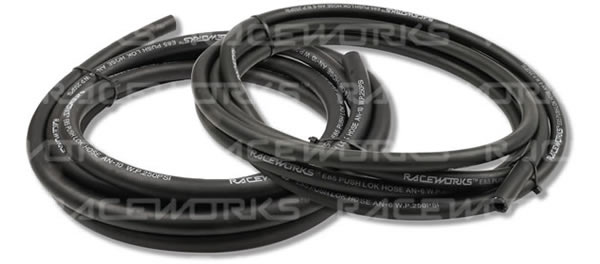

Raceworks 400 Series Rubber Hose has an inner liner of Nitrile which is reinforced with braid made from high tensile synthetic textile cord to give it extra strength. Raceworks 400 Series rubber hose is safe for use with E85, methanol, oils, lubricants and coolant. Recommended for use on low pressure systems/temperature applications. If using in high pressure or temperature above 70°C we recommend securing hose ends with a clamp. All Raceworks products come with a 2 year warranty.
Temperature Range: -40°C to 100°C. Ethanol & Methanol Safe.
Hose is not submersible.

For High temp applications, we recommend the use of the Fibreglass Heat Sleeving.

Size Operating Pressure Burst Pressure Inside dia Inch Inside dia mm Outside dia Inch Outside dia mm Weight (gm/m) Bend Radius (Inch) Bend Radius (mm)
AN-4 250psi 750psi 1/4″ 6.4mm 29/64″ 11.6mm 99g 1.18″ 30mm
AN-5 250psi 750psi 5/16″ 7.9mm 9/16″ 14.2mm 140g 1.38″ 35mm
AN-6 250psi 750psi 3/8″ 9.5mm 5/8″ 15.8mm 175g 1.58″ 40mm
AN-8 250psi 750psi 1/2″ 12.7mm 3/4″ 19.1mm 237g 2.17″ 55mm
AN-10 250psi 750psi 5/8″ 15.8mm 15/16″ 22.9mm 296g 2.44″ 62mm
AN-12 250psi 750psi 3/4″ 19.1mm 1-1/32″ 26.2mm 353g 3.54″ 90mm

Additional information

Weight 0.5 kg
Dimensions 30 × 30 × 10 cm
Condition

New

AN Size

-12, -10, -8, -6, -5
