PRP Block Brace RB26 2WD

PRP Block Brace RB26 2WD

$1,550.00

Suits all RB26 Engines that are being converted to two wheel drive

More options
Clear
  • Shipping Worldwide!
  • Click & Collect from Gold Coast, QLD
  • New & Used OEM & Aftermarket Parts
  • Australian Owned & Operated

Suits all RB26 Engines that are being converted to two wheel drive

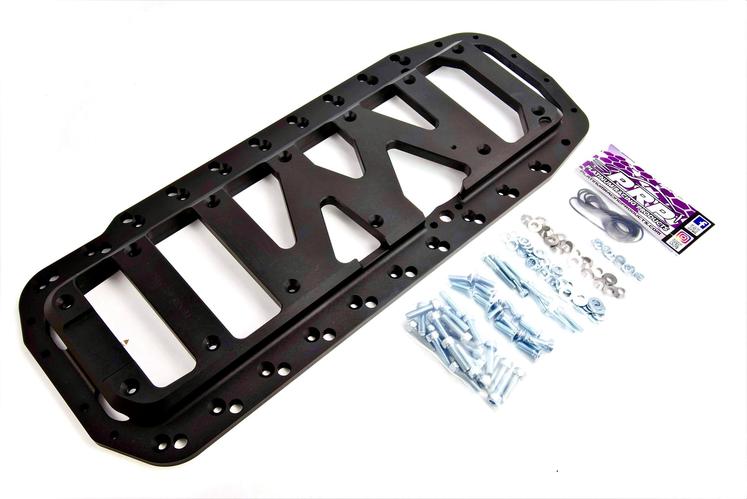

These are designed by Platinum Racing Products to eliminate block twist and cracking which is common for cast engine blocks

The Platinum Racing Engine Cradle (PREC) has been constructed from hi-grade aircraft quality billet aluminum and the product has several features that benefit.

The Platinum Brace overlays and supports the factory main cap cradle, and main caps cease walking!, have you ever noticed shiny mating surfaces of your block and main caps? The mains are walking and moving enough to polish the mating surfaces. The platinum block brace ties in the OEM cap cradle and stops the walk.

The standard main girdle is a great design and should be retained as a one-piece item, then strengthened with the PREC, as main bearing cap walk, or movement, may be experienced otherwise. There is also a valid argument for the use of a similar metal when it comes to the main caps and expansion / contraction of dissimilar metals when you consider a billet cap, different metals expand at different rates, Cast Iron blocks should have cast iron main caps, the harder the cap, the less shock is absorbed, the more detonation becomes critical as it has no place to go but into the rods.

We recommend this system up to 1000 HP, then our integrated main cap brace over 1000 hp.







Additional information

Weight 10 kg
Dimensions 35 × 20 × 79 cm
Condition: No selection

New

Engine: No selection

RB26
