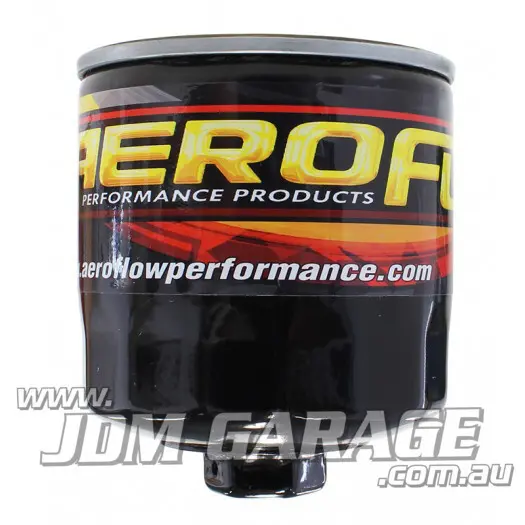

Aeroflow Oil Filter Z145A

Aeroflow Oil Filter Z145A


Suits S13 SR20DET, RB20, RB25 & RB26

Same as Z145A

Only 2 available! (additional can be backordered)

Condition: New
SKU: AF2296-2008
  • Shipping Worldwide!
  • Click & Collect from Gold Coast, QLD
  • New & Used OEM & Aftermarket Parts
  • Australian Owned & Operated

Aeroflow Oil Filters combine durability and easy removal in the new high performance filters. Originally designed for racers, these oil filters use an improved coil spring design and feature an extra-thick backing plate which provides added protection against pressure surges in racing applications. Featuring a Buna-N rubber gasket, these filters are compatible with almost all racing fuels and lubricants. In terms of filtration, these filters have a premium pleated synthetic blend media which provides increased filtration at high flow rates with minimal pressure drop.

Featuring an unique louvered centre tube, this allows more flow area and eliminates media wear during pleat movement which increases flow. Having an easy hex release nut, use a 24mm or 15/16″” spanner/socket which will allow for simple and easy removal. Replace your tired old oil filter with an Aeroflow Oil Filter today! Engineered for performance and durability, this is the new oil filter of choice for any application, street or track!

AF2296-2008 Filter Specification

Anti Drain Back Valve: Yes

Bypass Valve: No

Filter Material: High Flow Premium Media

Gasket Material: Nitrile Rubber

Height: 4.219in (107 mm)

Outside Diameter: 3.156 in (80 mm)

PSI Relief Valve: None

Removal Nut Size: 15/16″

Thread Specification: 3/4″”-16



Additional information

Weight 1 kg
Dimensions 20 × 10 × 10 cm



RB20, RB25, RB25 NEO, RB26, RB30, SR20
